avdio procesor 4Acoustic DT2006S speaker management processor

Prodam rabljen speaker management processor, avdio procesor 4Acoustic DT2006S,

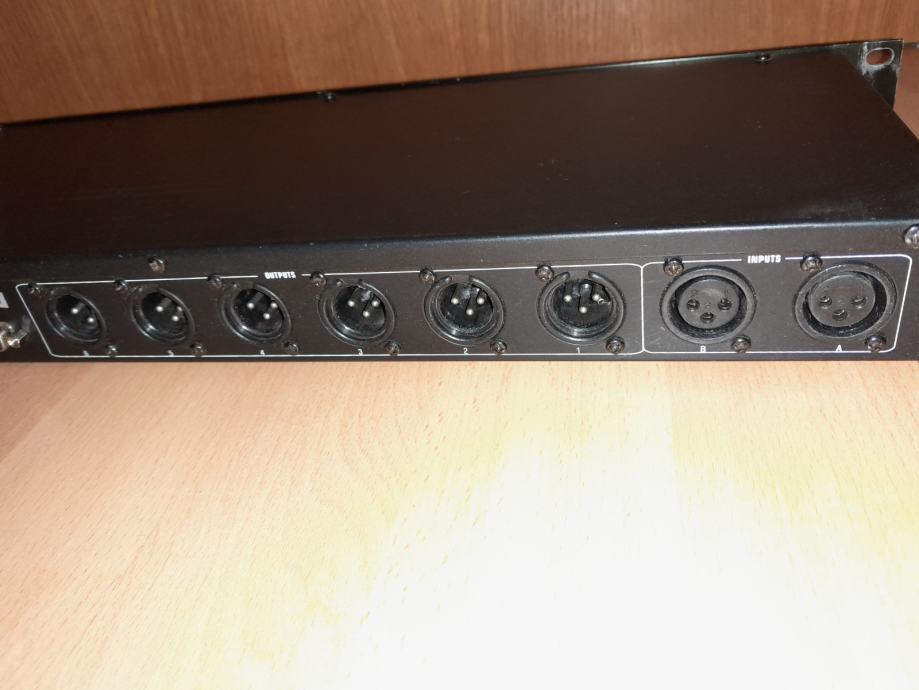

2 vhoda in 6 izhodov.

• DT2006S are based on DSP technology speaker processor high functional AKM A/D Ak5392

• 3pcs 24 bit high precision DSP

• Low distortion high dynamic frequency 20Hz~20kHz

• DT2006S is 2 input 6 output include 5 configure model 2×2way 2×3way 4way 5way 6way

• DT2006S is 2 input 4output include 4 configure model 2×2way 3way 4way 2way sub.

• Each model include input gain control each channel include separate crossover controller

• 5 band parameter equalizer delayer maxim delay 7ms

• Output gain and phase control parameter lock to avoid misoperation.

• Rs232 interface remote control include PC software.

• Each group parameter equalizer has 31 ISO frequency –12dB to +12dB gain.

• Each group Q value is from 0.5 to 10 and provide HI_shelf Lo_shelf select function.

• Separate limiter Attack Hold Decay and threshold parameter for flexible configuration.

• Each channel configure high pass,low pass 6dB 12dB 18dB 24dB 48dB Butterworth

• Linkwitz riley Bessel frequency response curve

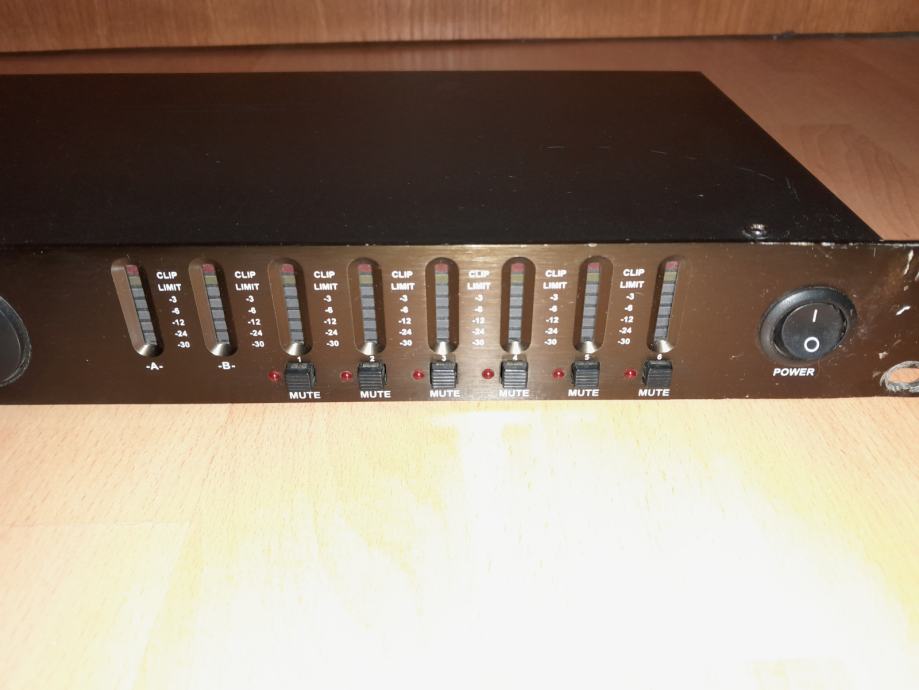

• 8× 7 bit input/output precision digital LED meter.

• 2 ×20LCD backlit

are based on DSP technology speaker processor high functional AKM A/D Ak5392

• 3pcs 24 bit high precision DSP

• Low distortion high dynamic frequency 20Hz~20kHz

• DT2006S is 2 input 6 output include 5 configure model 2×2way 2×3way 4way 5way 6way

• DT2006S is 2 input 4output include 4 configure model 2×2way 3way 4way 2way sub.

• Each model include input gain control each channel include separate crossover controller

• 5 band parameter equalizer delayer maxim delay 7ms

• Output gain and phase control parameter lock to avoid misoperation.

• Rs232 interface remote control include PC software.

• Each group parameter equalizer has 31 ISO frequency –12dB to +12dB gain.

• Each group Q value is from 0.5 to 10 and provide HI_shelf Lo_shelf select function.

• Separate limiter Attack Hold Decay and threshold parameter for flexible configuration.

• Each channel configure high pass,low pass 6dB 12dB 18dB 24dB 48dB Butterworth

• Linkwitz riley Bessel frequency response curve

• 8× 7 bit input/output precision digital LED meter.

• 2 ×20LCD backlit

Več info na tel 041 246 796
