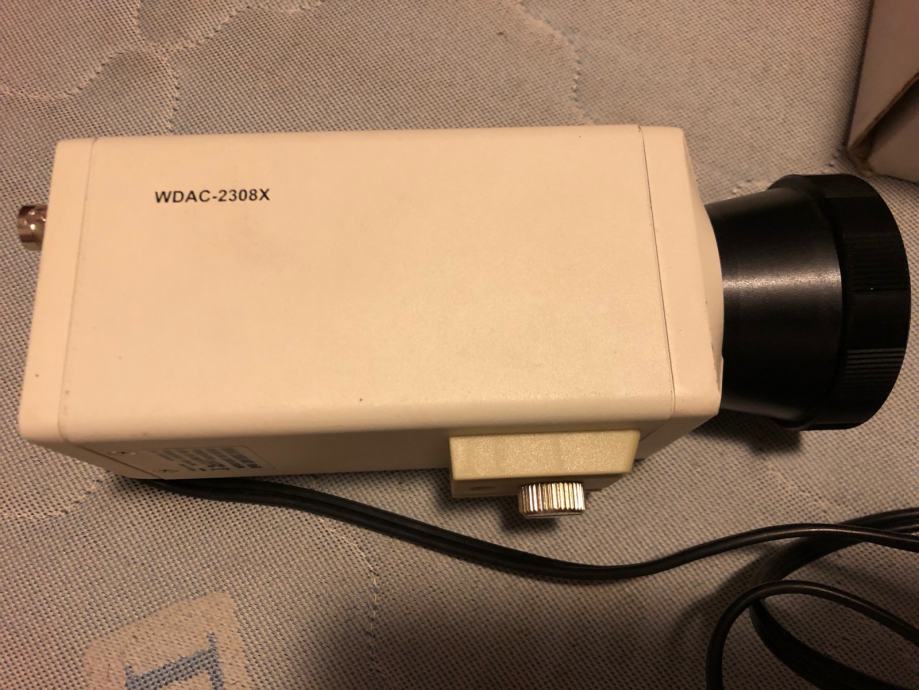

Kamera Weldex WDAC-2308X

Weldex WDAC-2308X 1/4-inch Color Digital Hi Res. 184x Zoom Camera (AC-24 Volt)
Nerabljena. Napajalnik.
Features Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Flickerless, On Screen Display Menu, Privacy Masking
Manufacturer Weldex
Camera Signal Analog
Resolution 470 TVL
Sensor Option 1/4" CCD
Lens Size 3.8-87.4mm, 23X
Infrared Distance Non Infrared
Durability Indoor
Mount Type Bracket Required
Voltage 24vAC
Electronic Shutter 1/60 ~ 1/10,000 28 Steps
Image Device 1/4" SONY New Super HAD CCD
Image Pixels Total 410,000/380,000 pixels
Image Pixels-Effective 410,000/380,000 pixels
Minimum Scene Illumination 1.0 Lux (AGC 34dB, 30 IRE)
Operating Humidity 0%RH ~ 90%RH
Operating Temperature 23°F ~ 140°F (Recommendation 23°F ~ 122°F)
Dimensions (W x H) 2.2"W x 2.4"H x 5.0"D
Power Consumption Max 4.5W(Motor active), 3,0W(Motor Stop)
S/N Ratio More than 49dB
Scanning System 2:1 Interlace

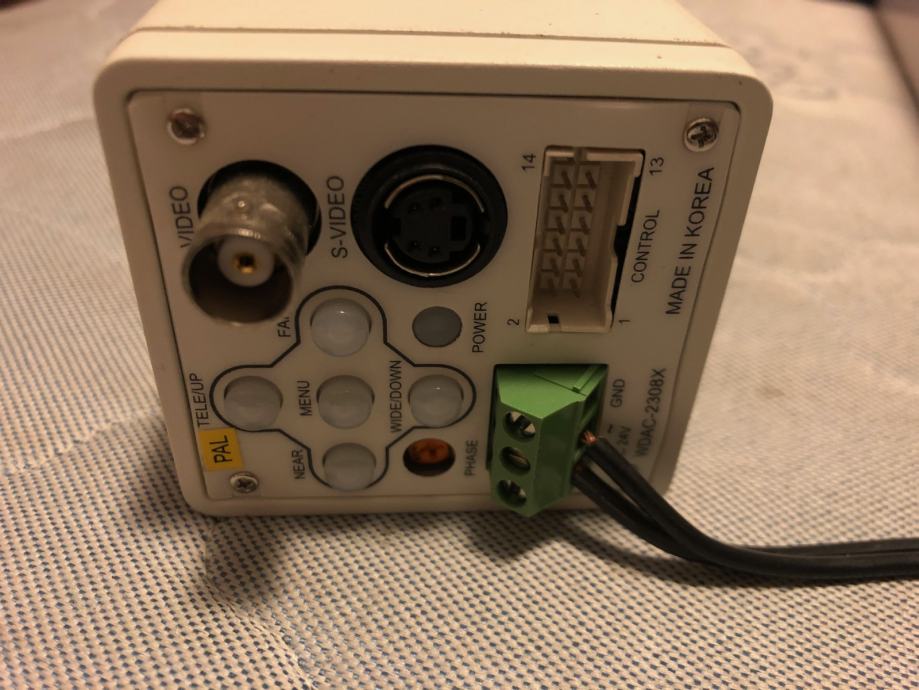

Video Output Composite output 75 ohm terminated 1.0 Vpp, Y/C Separate output
Zoom Ratio x24 ~ x184 Adjustable
Synchronization Internal / External (Line pule lock), Auto detecting selectable
Backlight Compensation ON / OFF / AUTO
Automatic White Balance ATW / MWB / Indoor / Outdoor / AWC
Auto Gain Control OFF ~ 38dB Adjustable
Flickerless ON(Shutter Speed 1/100) / OFF
Back Light Compensation Yes
Automatic White Balance Yes
Day/Night Yes
On Screen Display Menu Yes
Privacy Masking Yes
Auto Gain Control Yes
Flickerless Yes
