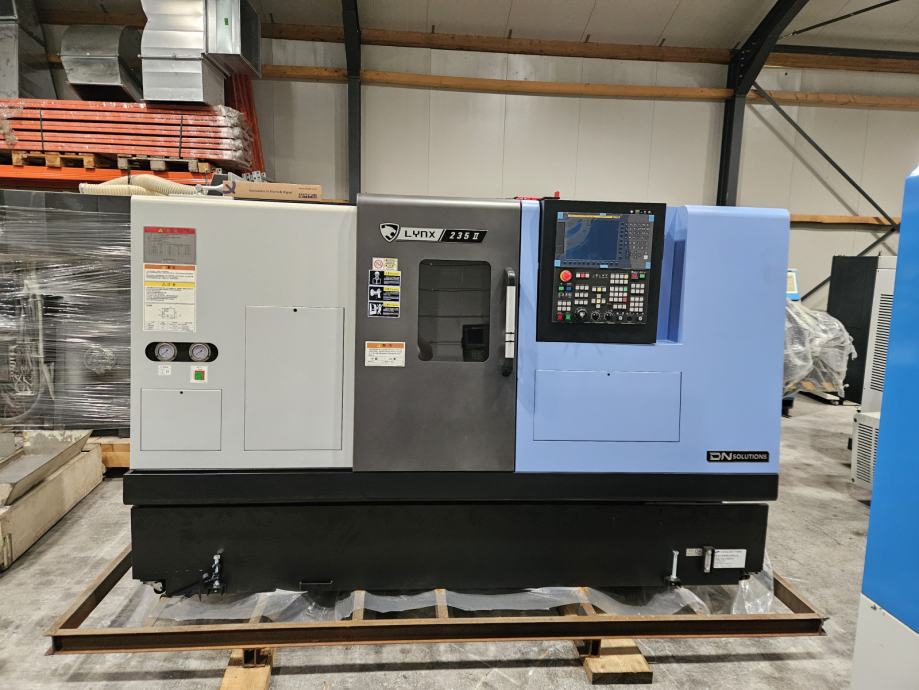

DN Solution LYNX 235 II
- Cena
- 59.000 €
Šifra oglasa: 12852830
Osnovne informacije
- Vrsta ponudbe
- Prodam
- Lokacija
- Savinjska, Rogaška Slatina, Spodnje Negonje
- Vrsta stroja
- Stružnice CNC
- Proizvajalec
- Drugo
- Model
- DN Solution LYNX 235 II
- Leto izdelave
- 2024
- Stanje
- novo
Opis oglasa
Swing over bed : 510 mm
Swing over saddle: 290 mm
Recommended. turning diameter: 210 mm
Max. turning diameter: 320 mm
Max. turning length: 525 mm
Bar working diameter: 65 mm
Spindle
Max. spindle speed 4.000 rpm
Spindle nose ASA A2#6
Spindle bearing
diameter(Front/rear) 110/ 100 mm
Spindle through Bore: 76 mm
Max. spindle torque: 176,7 Nm
Travel
Travel (X-axis): 175 mm
Travel (Z-axis): 550 mm
Rapid traverse (X-axis): 30 m/min
Rapid traverse (Z-axis): 36 m/min
Turret
No. of tool stations: 12 st
OD tool size: 25×25 mm
Boring bar size: 40 mm
Turret Index time: 0,15 s
Tailstock
Tip diameter: 65 mm
Center taper MT#4
Top trips: 80 mm
Maximum top thrust: 3.6 kn
Motors
Main spindle motor power: 18.5/15 kW
Servo motor (X-axis): 1,8 kW
Servo motor (Z-axis): 1,8 kW
Electric power supply rated capacity: 19,54 Kva

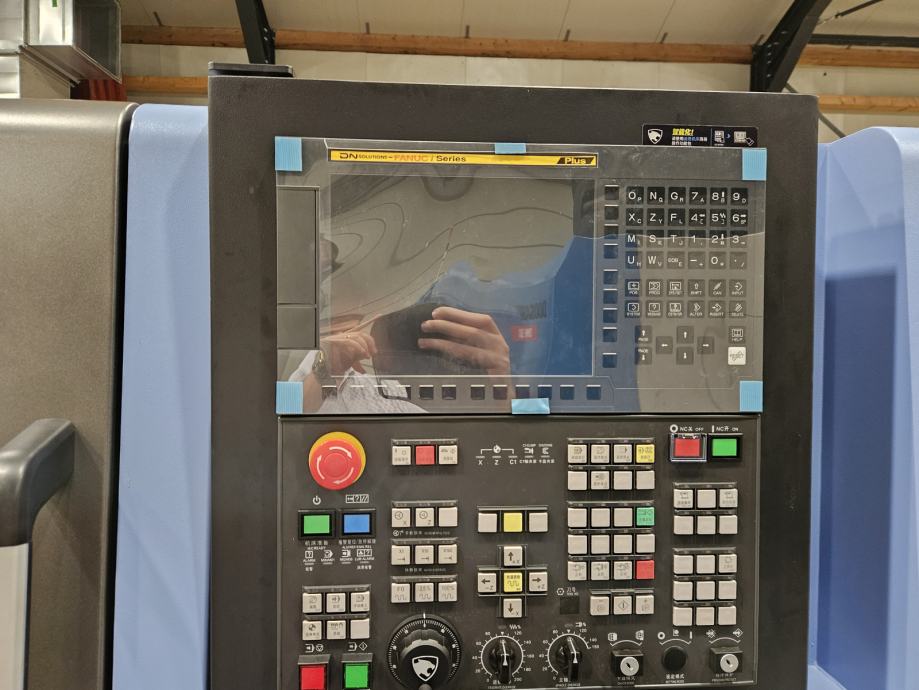

Control
Fanuc i Series
Machine dimensions
LxWxH: 2795*1620*1650 mm
Machine weight: 3.500 kg
Za vec informacij smo dosegljivi na info@micho.si ali 070452666
Swing over saddle: 290 mm
Recommended. turning diameter: 210 mm
Max. turning diameter: 320 mm
Max. turning length: 525 mm
Bar working diameter: 65 mm
Spindle
Max. spindle speed 4.000 rpm
Spindle nose ASA A2#6
Spindle bearing
diameter(Front/rear) 110/ 100 mm
Spindle through Bore: 76 mm
Max. spindle torque: 176,7 Nm
Travel
Travel (X-axis): 175 mm
Travel (Z-axis): 550 mm
Rapid traverse (X-axis): 30 m/min
Rapid traverse (Z-axis): 36 m/min
Turret
No. of tool stations: 12 st
OD tool size: 25×25 mm
Boring bar size: 40 mm
Turret Index time: 0,15 s
Tailstock
Tip diameter: 65 mm
Center taper MT#4
Top trips: 80 mm
Maximum top thrust: 3.6 kn
Motors
Main spindle motor power: 18.5/15 kW
Servo motor (X-axis): 1,8 kW
Servo motor (Z-axis): 1,8 kW
Electric power supply rated capacity: 19,54 Kva
Control
Fanuc i Series
Machine dimensions
LxWxH: 2795*1620*1650 mm
Machine weight: 3.500 kg
Za vec informacij smo dosegljivi na info@micho.si ali 070452666
