Optik fiber OTDR 300C Tester 120km 1310/1550nm - najem

Dnevni najem osnovnega OTDR SM Testerja TMO-300C za prepoznavanje defekta ali merjenja slablenja na lokalni optični trasi. Možna izvedba meritev in testiranje z usposobljenim tehnikom. Test Distance Range 120km, TFT LCD 5.6", 1310nm/1550nm, Single-Mode, Dynamic Range 32/30dB, Connector type FC/PC or SC/PC adapter, VFL 10mW Built-in z Lion Battery, enostavna uporaba z prenosom meritev na računalnik ter izpis dokumentacije.

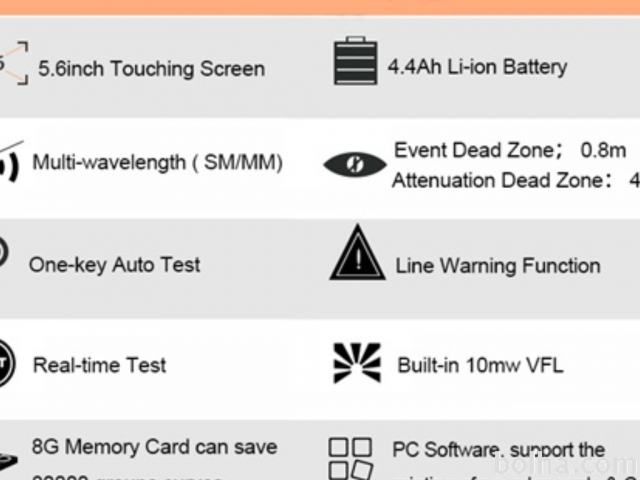

Features

5.6-Inch outdoor-enhanced touchscreen, 7.4V/4.4Ah Lithium battery
Event Dead zone as lower as 1.5meter
Combined multi-dynamic range and wavelengths
Muti measurement mode, support Touching LCD and pressing keys
Warning function could prevent OTDR module from being damaged by optical signal in fiber.
Realtime measuring function, convenient to monitor the splicing process
Integrated 10mw Visual Fault Locator
Support English/ Chinese input, adopts friendly input interface, totally simulate the computer keyboard input
Integrated with 8GB internal memory, more than 80,000 groups curve storage
PC remote access and control function is available, which support the printing work of the measurement repor

Functions

Automatic Measurement Mode：Operators do not need to choose the test distance and pulse width, the tester will automatically judge the length, and choose suitable dynamic range as well as pulse width to complete the work; The storage of event trace can be saves manually or automatically which will be convenient for data analysis
Multiple Wavelengths Measurement Mode：In order to use different wavelengths to execute the loss calculation in one fiber, we can choose duplex wavelengths test mode from parameter settings, the tester will switch wavelengths automatically

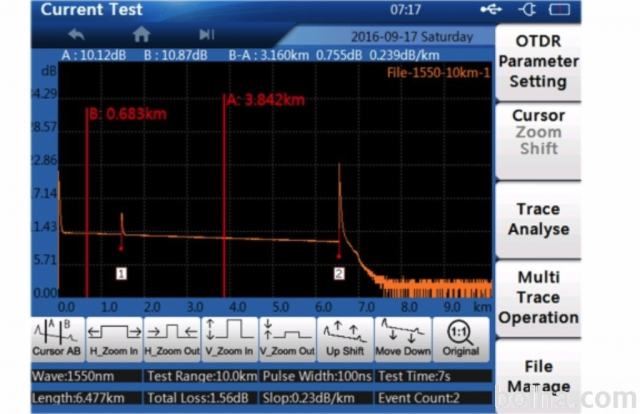

Multiple Trace Analysis：Simultaneous display 4 traces, operators can compare the traces and make analysis of any ones among the traces
Online Test：This will protect the test instruments and equipment
Duplex Operation Mode:Pure operation through touch screen ; or pure operation through the pressing keys
Data Analysis: Save and generator standard trace file(. Sor), more than 20000 groups storage capacity:
Print the analysis report and traces which make the acceptance or work easily;

Specifications
Pulse Width (SM 1310/1550NM) 5ns 10ns 20ns 50ns 100ns 500ns 1μs 2μs 5μs 10μs
Distance Range (SM 1310/1550NM) Dead zone test, 1.3km, 2.5km, 5.0km, 10km, 20km, 40km, 80km, 120km
Sampling Resolution Minimum 0.05m
Sampling Point 128,000
Linearity ≤0.05dB/dB
Loss Threshold 0.01dB Loss Resolution 0.001dB Distance Resolution 0.01m
Distance Accuracy ±（1m+measuring distance×3×10 +sampling resolution）
Data Storage 20000 groups of curve
VFL 10mW，CW/2Hz
Interface 3x USB ports（Type A×2，Type B×1）
Display 5.6" TFT-LCD, Touching screen

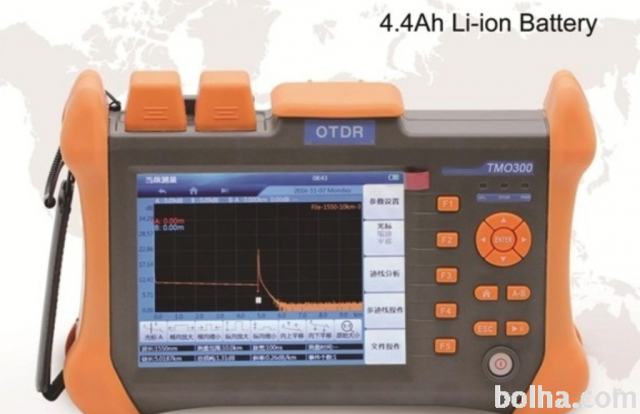

Battery 7.4V/4.4Ah lithium battery , support 8 hours continuous working
Working conditions
Working Temp：-10℃~+50℃；Storage Temp：-20℃~+70℃；Humitity ：≤95%（non-dew）
Dimensions/Weight 253×168×73.5mm / 1.5kg（include battery）

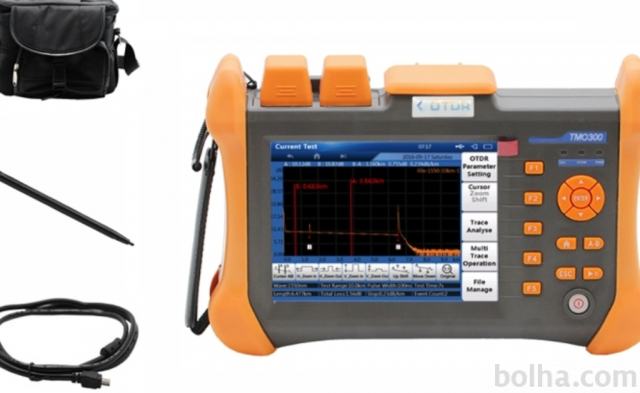

Straps; Adaptor; Lithium battery; FC connector; USD Cable; User Guide; CD; softbag; cleaning cotton
