Ta oglas je prodan.
Prebrskaj podobne oglase.
Adapter SD kartice na 40 pin IDE disk konverter
- Cena
- 10 €
Šifra oglasa: 2981807
Osnovne informacije
- Lokacija
- Savinjska, Slovenske Konjice, Slovenske Konjice
- Stanje
- rabljeno
Opis oglasa

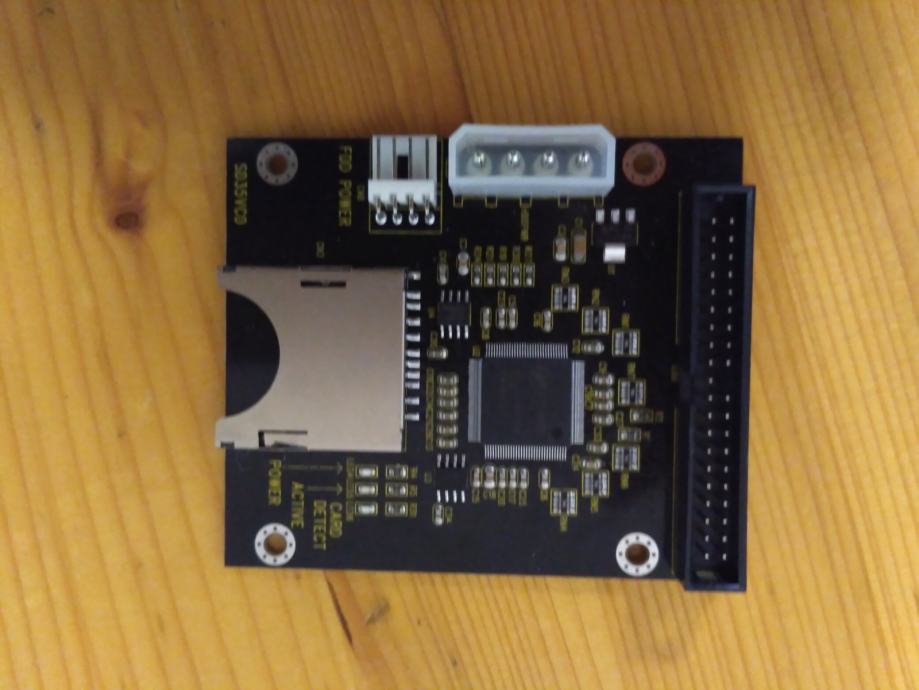

Prodam PCB adapter, ki ga lahko uporabljate namesto navadnega 40 pinskega IDE diska. Bere SD kartice. Napajanje je preko kabla za disk ali kabla za disketno enoto.
Primerno za stare retro računalnike. Pošljem tudi po pošti.
Podrobnosti:
Support PIO, Multi-word DMA,Ultra DMA Host data transfer mode.
Compatible with DOS, Windows 98SE, Me, 2000, XP and Vista & Linux.
Bootable, install OS and application on SD card.
D-IDE conversion interface board instructions:
The power supply seat can be supplied with a power supply by a hard disk. The card can only be powered by 5V, and the normal working voltage is 5V + 0.25V. Operating current less than 200mA.
IDE socket, please select 80 PIN hard disk connection line.
SD socket supports maximum 4GB SD card.
Connect the power and the IDE cable. After the SD socket is inserted into the SD card, the conversion board is equivalent to an electronic hard disk without installing the driver. After installing the operating system, you can start the operating system via the SD memory card (such as windows98 ,etc.).
The data rate is high, roughly the same speed as the system hard disk drive (ATA/133, U-DMA, Mode3).
Primerno za stare retro računalnike. Pošljem tudi po pošti.
Podrobnosti:
Support PIO, Multi-word DMA,Ultra DMA Host data transfer mode.
Compatible with DOS, Windows 98SE, Me, 2000, XP and Vista & Linux.
Bootable, install OS and application on SD card.
D-IDE conversion interface board instructions:
The power supply seat can be supplied with a power supply by a hard disk. The card can only be powered by 5V, and the normal working voltage is 5V + 0.25V. Operating current less than 200mA.
IDE socket, please select 80 PIN hard disk connection line.
SD socket supports maximum 4GB SD card.
Connect the power and the IDE cable. After the SD socket is inserted into the SD card, the conversion board is equivalent to an electronic hard disk without installing the driver. After installing the operating system, you can start the operating system via the SD memory card (such as windows98 ,etc.).
The data rate is high, roughly the same speed as the system hard disk drive (ATA/133, U-DMA, Mode3).
