AMIKO SATelitski SPREJEMNIK SSD 560

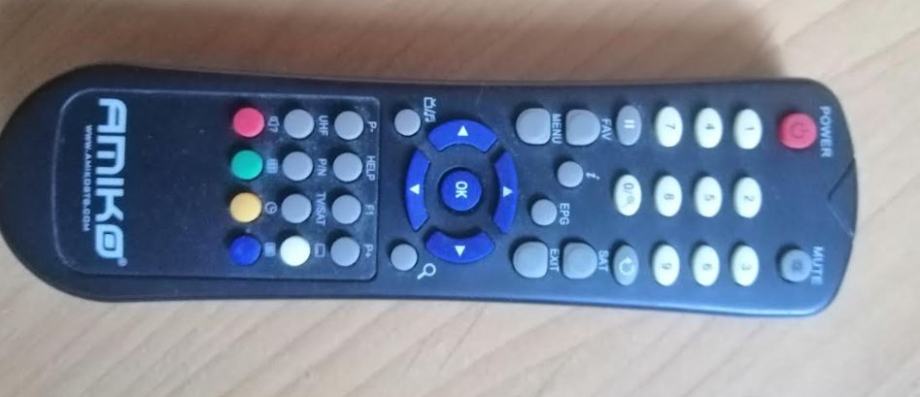

Satelitski sprejemnik z dalincem.
Kot nov, ker so bili uporabljani v apartajih (imam več kosov).

Novi so bili več kot 68 eur https://www.ceneje.si/Izdelek/2637662/avdio-video/dodatna-oprema/za-televizorje/amiko-sat-sprejemnik-ssd-560

Features
Cititor de cartela CONAX
Scanare detaliata frecvente
Controlul avansat al canalelor prin liste Favorite, Blocare, Omitere, Mutare si Stergere
Memorare de 4000 de canale de televiziune si radio
Ghid de Programe Electronic (EPG)
Meniu usor de utilizat
Control Multi-LNB prin comanda DiSEqC versiunea 1.0, 1.1, 1.2 si USALS
Consum redus in modul Stand-By
Modulator RF
General:
System standard: Fully MPEGII/DVB Compliant
Channel Storage: Max.4000 TV and Radio Channels
Input Frequency: 950~2150Mhz
RF Input level: -65~-25dBm
LNB Control: DiSEqC1.0/1.2
LNB Power: 13V/18V (Max, 500mA)
LNB tone switch: 22KHZ
Waveform: QPSK (SCPC, MCPC capable)
Symbol rate: 2~45Mbps



A/V Mode:
Video format: MPEG-II Main profile/Main level
Audio format: MPEG-II layer I&II
Aspect Ratio: 16:9, 4:3
Audio sampling rate: 32,44.1, 48kHz
Audio Type: Mono Dual Mono, Stereo, Joint stereo
Graphic display: 720x576(PAL), 720x480(NTSC)

Microprocessor & Memories:
Processor: 200 MIPS based CPU
RAM : 64Mbits
FLASH: 16Mbits

Power & Environment Condition:
Supply Voltage: Free Voltage (100~250V AC, 50/60Hz)
Supply Power: Max.12W
Operating temp: 5℃~45℃

Physical Specification:
LED display: 4 digits
Dimensions: 220(W) x 153(D) x49(H)mm

Connection:
Satellite IF input: F-type (Digital)
Satellite IF loop out: 950-2150MHz
RS232: 9 way D Rs232 DCE serial port
Scart: TV / VCR (Optional)
Video: RGB, CVBS, YUV
Audio: Audio left, Audio right
Control Output (Optional): 0/12V out
