video domofon GENWAY VILA

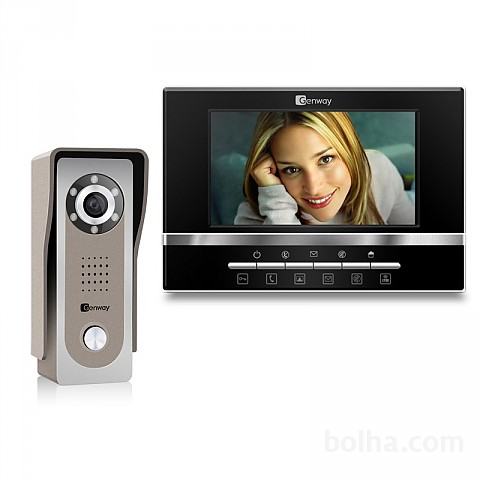

Genway C5-S7V13 kit is used to mount single-family homes. It is possible the extension of up to three monitors any series of C5 (using module C5-4110S) and one external panel (via module C5-4230). The set includes:
- External Panel, Surface C5-S7
- Monitor 7" color C5-V13
- Power supply C5-4001
- Warranty 2 years

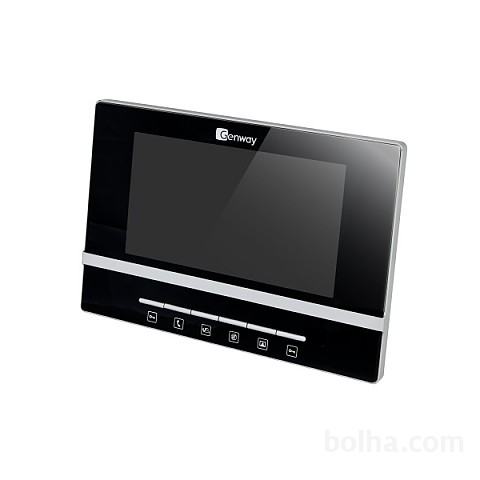

Monitor C5-V13
Monitor for video door phone series C5 with a color display with a diagonal 7 ". Allows you to talk to visitors, opening electric lock on the door and contact with the doorman / security. Works with any external panel of this series. At any time you can view the image from the panel. The monitor is adjustable ringer volume and conversation, contrast and brightness, so you can adapt his work to the individual requirements. possible to connect up to 4 monitors to a single call number.

Specifications:
-Voltage: DC 35V ± 10%
-Current consumption at rest: ?25mA
-Current consumption during operation: ?350mA
-Display: 7 "color LCD
-Resolution: 480x234
-Temperature range: -10 to +55 degrees Celsius
-Humidity: 45% to 95%
-Dimensions: 210x145x26 mm

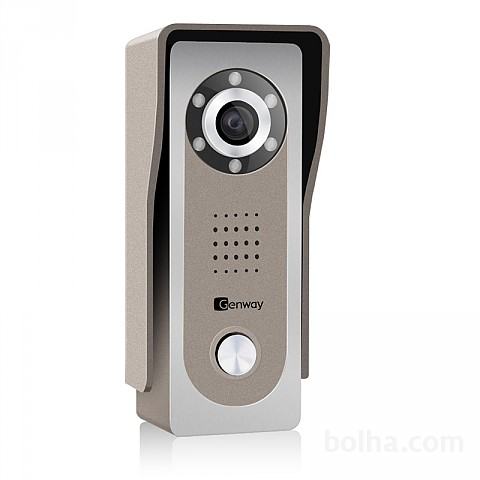

External Panel C5-S7
Outer panel for video door phone C5 series. Works with any monitor in this series. Possible installation in single and multi-family systems.
Product characteristics:
High quality Sony CCD color camera with white LEDs, light to image the night
Vandal resistant panel made of stainless steel and aluminum
3.6mm lens, the angle of view of 72.8 degree
Possibility to connect up to 4 monitors (using the module C5-4110S)
Surface mounting

Specifications:
-Voltage: DC 35V ± 10%
-Static current: ?35mA
-The intensity of work: ?110mA
-Temperature range: -25 to +70 degrees Celsius
-Humidity: 45% to 95%
-Dimensions 133x58x48 mm
