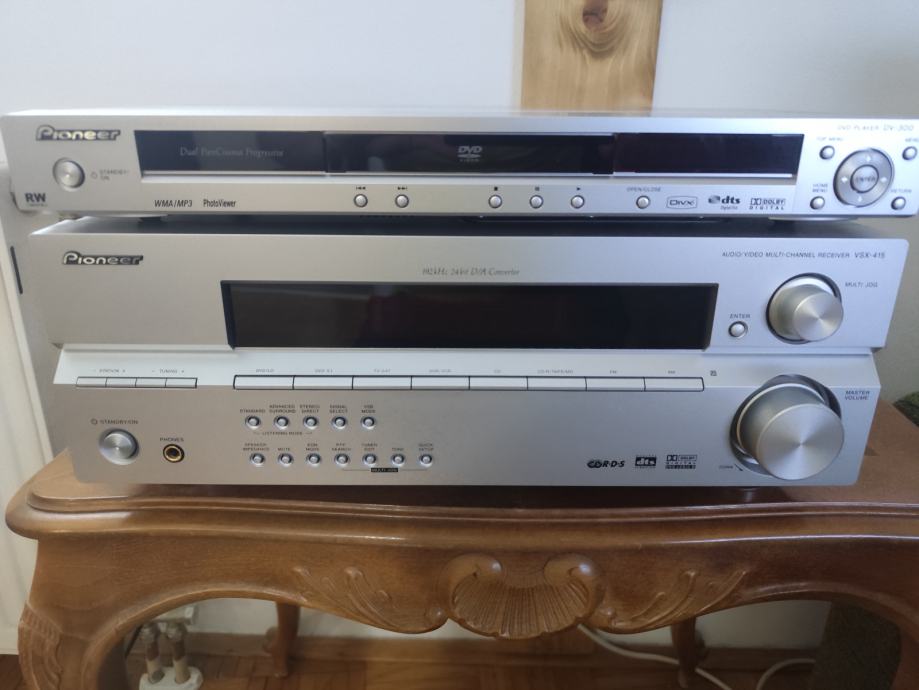

AV Receiver Pioneer VSX415

Prodam AV Receiver Pioneer VSX415 skupaj z DVD playerjem.

Karakteristike Receiverja:
Key features VSX-415-S

Application of surround sound decoders (Dolby Digital, DTS, Dolby Pro Logic II)

Multi-channel surround sound from a variety of sources

Quick Set-up

Direct Construction

Large screw-type speaker terminals

8 Original Surround Modes

Effective temperature control thanks to the Pioneer Hybrid Amplification (PHA) Circuit

Power Output VSX-415-S

RMS Power (1kHz, 10%THD, 8 Ohm/ch) 100W/ch

Stereo (DIN) 2 x 80 W (8Ohm, 1% THD, 1 kHz)

Surround Front 100 W/ch (1kHz, 10%THD, 8Ohm)

Surround Centre 100 W (1kHz, 10%THD, 8Ohm)

Rear (Surround) 100 W/ch (1kHz, 10%THD, 8Ohm)

Surround Sound VSX-415-S

Dolby Digital Yes

DTS Yes

Dolby Pro Logic Yes

Dolby Pro Logic II Yes

Surround Modes • Advanced MUSIC
• Advanced MOVIE
• Expanded Theater
• Virtual Surround Back
• Phones Surround
• Advanced Game
• TV Surround
• Sports
• 5-channel stereo

Construction VSX-415-S

Direct Construction Yes

Amplifier Design VSX-415-S

Accurate Imaging System Yes

Pioneer Hybrid Amplification Yes

Audio Features VSX-415-S

Digital Signal Processor Motorola 150 MIPS 48-bit Processing

D/A Converter 192 kHZ/24-Bit

A/D Converter 96 kHz/24-Bit (2-channel)

Midnight Listening Mode Yes

Source Direct Yes

Bass/Treble Tone Controls Yes

Loudness Yes

Quick Set-up Room Size / Seat Position

Conveniences VSX-415-S

FL Dimmer Yes, 4 steps

Sleep Timer Yes

Remote Control VSX-415-S

Remote Control type SR

Source Control: DVD, Satellite tuner

Tuner Features VSX-415-S

RDS (Radio Data System) Yes

Random Preset Stations 30

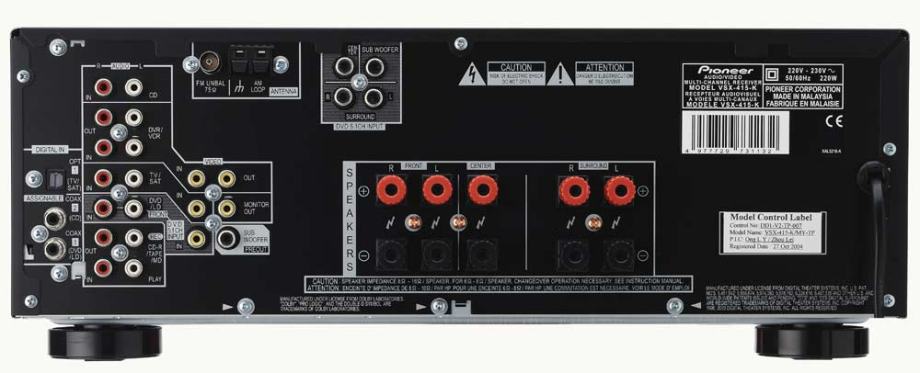

Terminals VSX-415-S

Multi-Channel Input 5.1 ch (DVD)

Digital Audio Input 3 (assign)

Digital Coaxial input 2

Digital Optical input 1

RCA Audio/Video Inputs 3 A / 3 AV

Audio/Video Output 1A / 1AV+1V

Pre-amp Output Yes (SW)

SR (System Remote) Terminal Yes (In/Out)

Speaker A/B A only

Large Speaker Terminals Yes (All)

Amplifier Specifications VSX-415-S

Input (Sensitivity/Imp.): LINE 200 mV / 47 kOhm

Frequency Response: LINE 5 - 100 000 Hz, +0 / -3 dB

Signal-to-Noise Ratio: LINE (DIN) 88 / 64 dB

FM Tuner Specifications VSX-415-S

Usable Sensitivity (Mono) 13,2 dBf, IHF (1,3 µV / 75 Ohm)

Sensitivity Mono (26 dB S/N, 75 Ohm) 1,1 µV

Sensitivity Stereo (46 dB S/N, 75 Ohm) 50 µV

Signal-to-Noise Ratio Mono (DIN) 62 dB

Signal-to-Noise Ratio Stereo (DIN) 58 dB

Stereo Separation (1 kHz) 40 dB

Video Specifications VSX-415-S

Input (Sensitivity/Impedance) 1 V p-p / 75 Ohm

Miscellaneous VSX-415-S

Power Requirements AC 220 - 230 V
50 / 60 Hz

Power Consumption 220 Watt

Power Consumption in standby mode 0,5 Watt

Dimensions (W x H x D) 420 x 158 x 394.5 mm

Weight 8,7 kg
