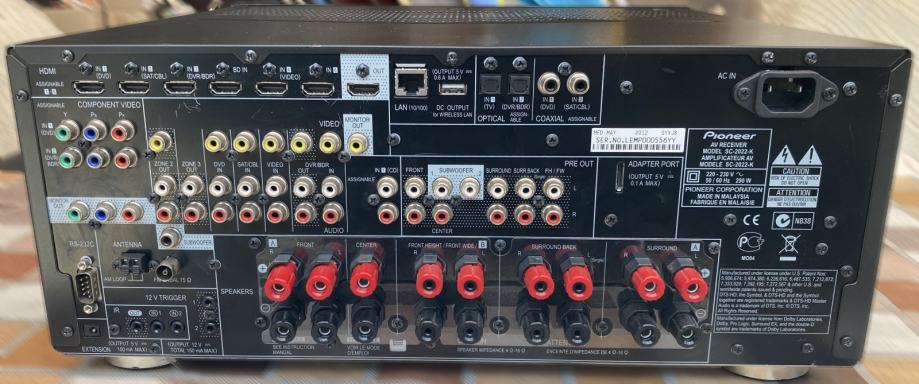

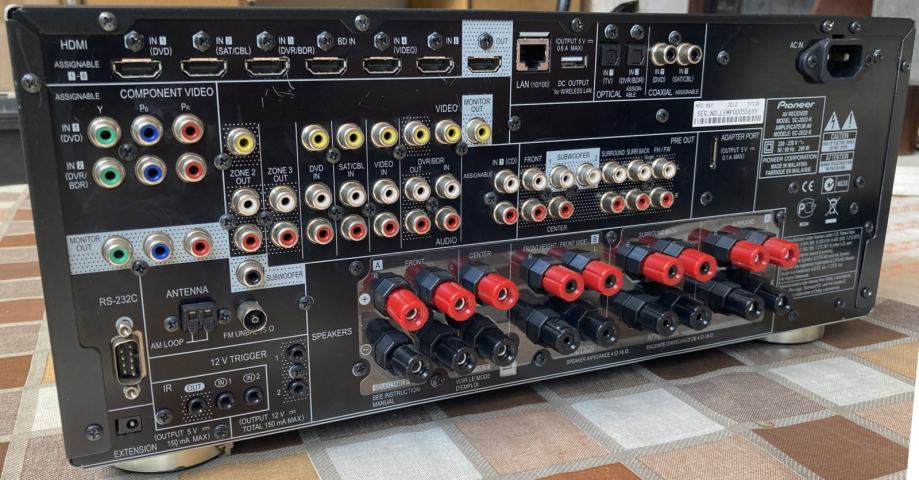

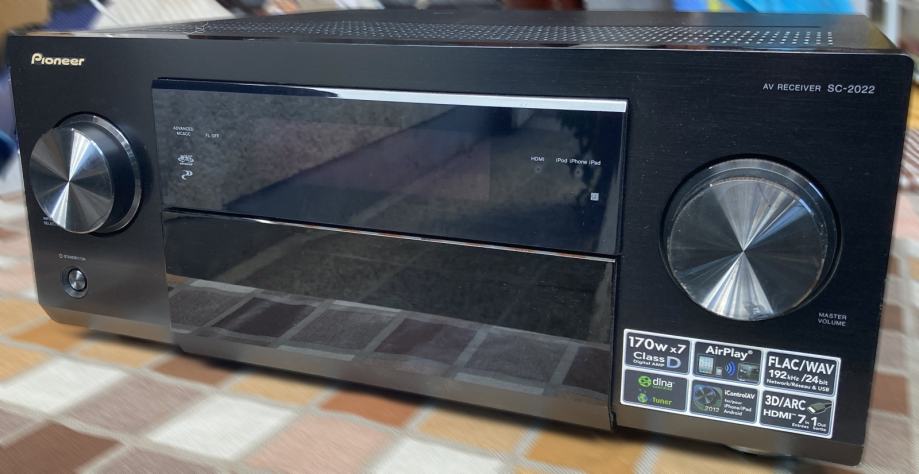

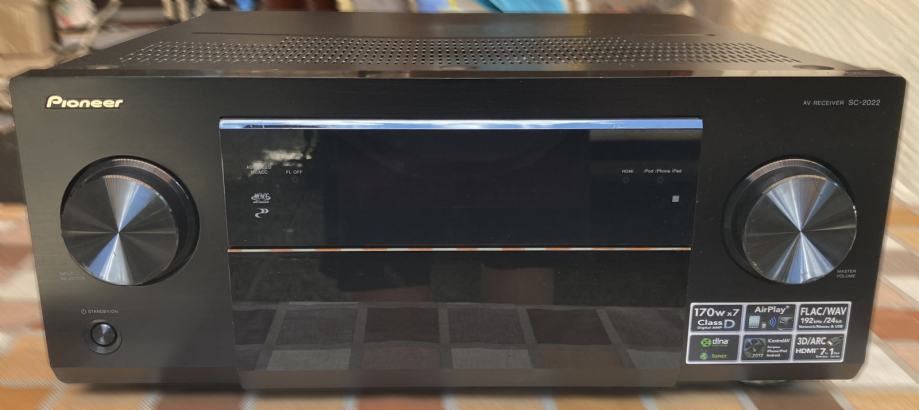

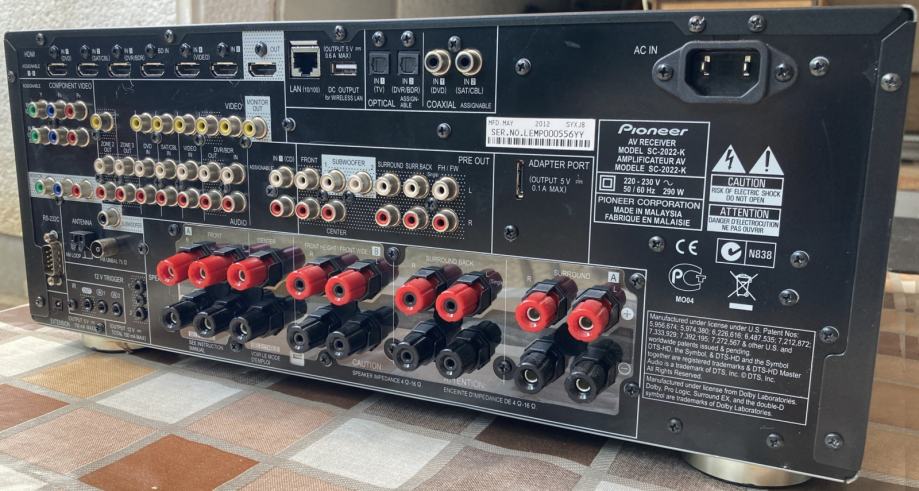

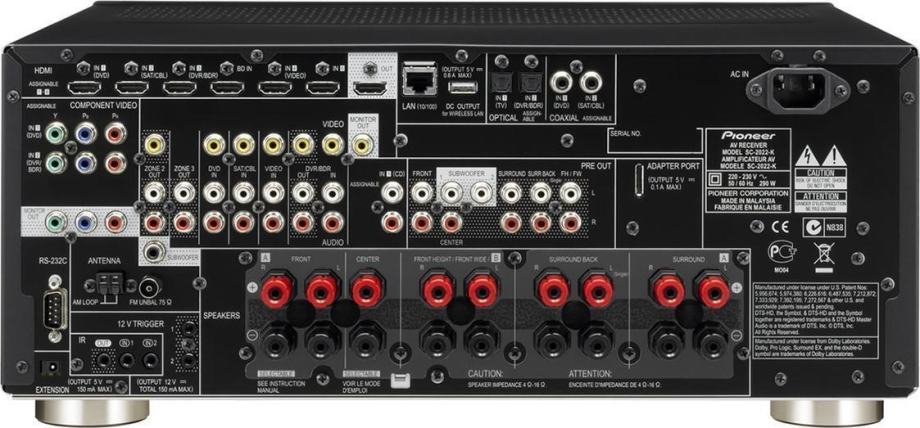

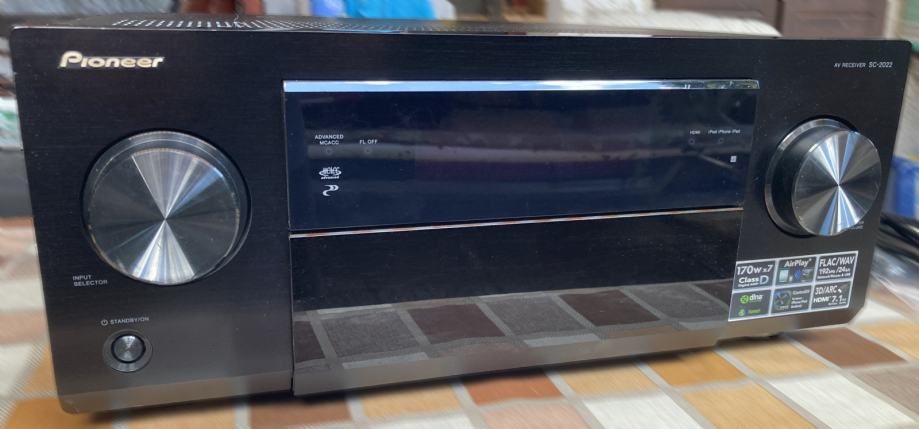

Pioneer SC-2022-K AV Receiver

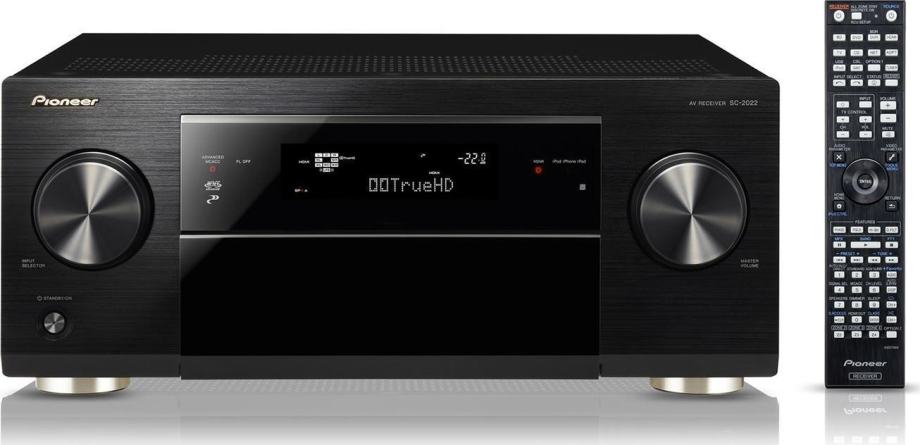

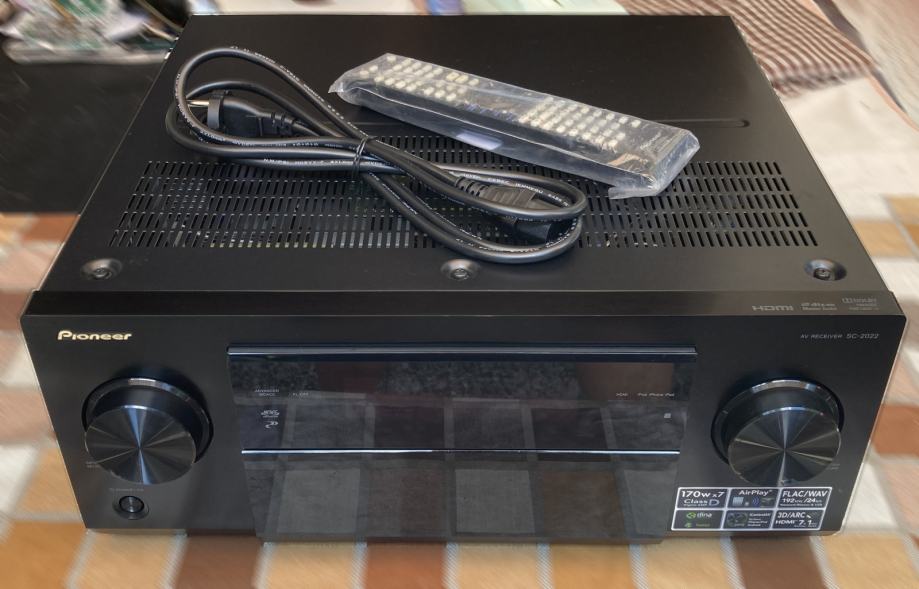

Prodam 7.2 kanalni surround audio / video sprejemnik / ojačevalec Pioneer SC-2022-K. Brezhiben, zelo lepo ohranjen. Priložen daljinski upravljalnik in napajalni kabel.

Navodila (PDF):
https://mega.nz/file/r0w1XaIQ#uYrkK6N7KXQca1vDT36JHupPDMu6eUTCsmME3y_caV4

Specifikacije:

Amplifier section
Multi channel simultaneous power output (1 kHz, 1 %, 8 W)
7 ch total.......................................................630 W
Rated power output (1 kHz, 6 ohm, 1 %)
Front............................................................ 170 W + 170 W
Center...........................................................170 W
Surround...................................................... 170 W + 170 W
Surround back.............................................. 170 W + 170 W
Rated power output (1 kHz, 8 ohm, 0.08 %)
Front............................................................ 130 W + 130 W
Center.......................................................... 130 W
Surround...................................................... 130 W + 130 W
Surround back.............................................. 130 W + 130 W
Rated power output (1 kHz, 4 ohm, 1 %)
Front............................................................. 210 W + 210 W
Center............................................................210 W
Surround....................................................... 210 W + 210 W
Surround back.............................................. 210 W + 210 W
Total harmonic distortion............................... 0.04 % (1 kHz, 110 W + 110 W, 8 W)
Guaranteed speaker impedance.................. 4 ohm to 16 ohm

Audio Section
Input (Sensitivity/Impedance)
LINE............................................................. 380 mV/47 kW
Output (Level/Impedance)
REC............................................................. 380 mV/2.2 kW
Signal-to-Noise Ratio (IHF, short circuited, A network)
LINE............................................................. 101 dB

Tuner Section
Frequency Range (FM)............................... 87.5 MHz to 108 MHz
Antenna Input (FM)..................................... 75 W unbalanced
Frequency Range (AM)............................... 531 kHz to 1602 kHz
Antenna (AM).............................................. Loop antenna (balanced)

Video Section
Signal level
Composite Video......................................... 1 Vp-p (75 W)
Component Video........................................ Y: 1.0 Vp-p (75 W), PB/PR: 0.7 Vp-p (75 W)
Corresponding maximum resolution
Component Video....................................... 1080p (1125p) (Video convert off)

Digital In/Out Section
HDMI terminal.............................................. 19-pin (Not DVI)
HDMI output type......................................... 5 V, 55 mA
USB terminal................................................ USB2.0 High Speed (Type A) 5 V, 2.1 A
iPod terminal................................................ USB, and Video (Composite)
ADAPTER PORT terminal............................ 5 V, 100 mA
WIRELESS LAN ADAPTER terminal............. 5 V, 600 mA

Integrated Control Section
Control (IR) terminal..................................... ø 3.5 Mini-jack (MONO)
IR signal....................................................... High Active (High Level: 2.0 V)
12 V Trigger terminal.................................... ø 3.5 Mini-jack (MONO)
12 V Trigger output type.............................. 12 V, Total 150 mA
RS-232C cable type..................................... 9-pin, cross type, female-female
EXTENSION terminal.................................... 5 V, 150 mA

Network Section
LAN terminal................................................ 10 BASE-T/100 BASE-TX

Miscellaneous
Power requirements..................................... AC 220 V to 230 V, 50 Hz/60 Hz
Power consumption...................................... 290 W
In standby..................................................... 0.1 W (HDMI Setup – Control : OFF)
0.3 W (HDMI Setup – Control : ON)
Dimensions................................................... 435 mm (W) x 185 mm (H) x 441 mm (D)
Weight (without package)............................ 14.8 kg


GSM: 040/268-630
Lokacija: Društvena ulica, Ljubljana-Moste
