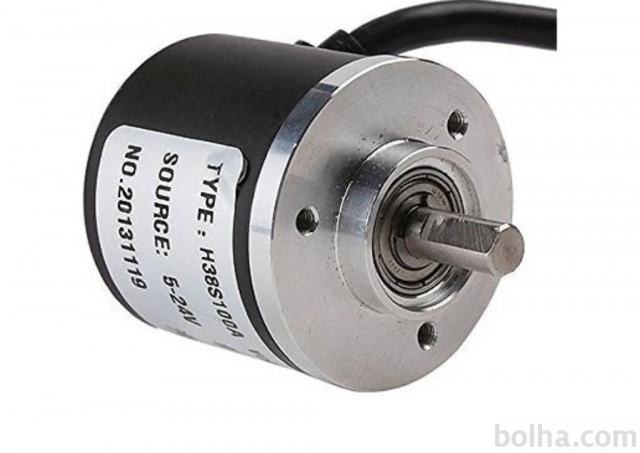

Encoder, Enkoder, dajalnik impulzov 600 ppr CNC

Prodam rotacijski dajalnik impulzov primeren za UHU servo kartice ali podobne zadeve - 600 impulzov na obrat.
Encoderji so novi - prodajam jih zaradi opustitve projekta - pomanjkanje časa.

Angleški opis:
Maximum mechanical speed of 6000 rev / min.
Light weight and small size.
By rotating the grating disk and optocoupler direction which generate counting pulses.
Easy installation.
Fits for measuring the rotational speed of the object , angle, acceleration, and length measurement.
Color: Like the picture show
Model: incremental rotary encoders,AB two phases
600P/R-600 pulses per revolution.
DC 5-24V power supply.
The response frequency: 0-20KHz
Size:
Encoder size: 39 x 35.5mm,Shaft 6 x 13mm
Axis stopper platform: High 5mm, 20mm
Fixed empty as: three 3mm screw holes distribution of 120 degrees / or six 3MM screw holes into 60 degree distribution,to the center distance of 14mm.
Wires length: 188cm / 74"
Fitment:
Suitable for a variety of intelligent control displacement measurement ,automatic fixed-length automatic guillotine paper machine,steel cut length control ,civilian measured height human scale,students racing robots.
Wiring Output : A phase, B phase, Vcc positive supply, V0, the shield wire.
Connection: Green = A phase, white = B phase, red = power , black = power -

Cena: 34 €/kos
