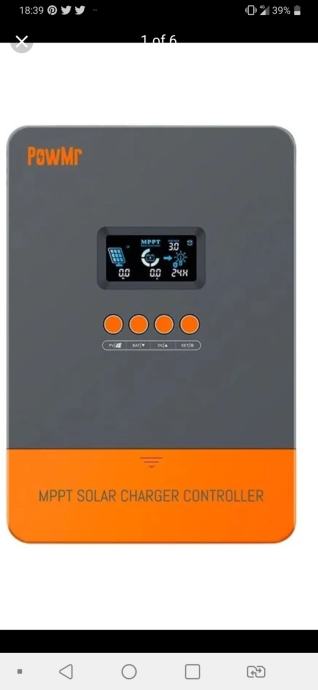

Power Mr Solarna polnilna naprava Mppt 60A

Prakticno nova samo testirana in deluke bp.
Prodajam ker sem narocil hibridni razsmernik .



PowMR 60A MPPT solar charge controller is based on an advanced maximum power points tracking(MPPT) technology developed, dedicated to the solar system, the charge controller conversion efficiency up to 97%.

Features:

●MPPT 30A/40A/50A/60A solar charge controller
●100% MPPT technology
●0 Layer, easy installation, easy setup
●Built-in DSP controller with high performance
●Automatic switch for 12V/24V/36V/48V battery bank
●3-stage charging optimizes battery performance
●Overcharge protection, Input PV polarity reverse protection, Output limited current protection,
●Over-temperature protection
●Troubleshooting promotions function.
●Suitable for battery types such as sealed lead acid, vented gel, and lithium battery, etc
●Easy to be mounted
●Restore all data with one click

Specification:

Model

POW-M60-PRO

Charging mode

MPPT Maximum power points tracking automatically

Charging

3-stage:constant current(MPPT), constant voltage(Absorption Voltage), floating charge

System type

DC12V/24V/36V/48V Recognition automatically

System voltage automatic recognition

1 2V system (DC9V-DC15V)

24V system (DC18V-DC29V)

36V system (DC30V-DC39V)

48V system (DC40V〜DC60V)

Soft start time

98.1 % (Voc is 1.5 or 2 times than battery, then it's the best efficiency)

PV utilization

>99%

Input specification

VOC from PV( Make sure the Voc of PV meeting the requirement as right. Voc is 1.5 or 2 times than battery, then it's the best efficiency.)

12V system (DC20V〜DC80V)

24V system (DC37V-DC105V)

36V system (DC50V〜DC160V)

48V system (DC72V〜DC160V)

The maximum PV input voltage (Voc)

DC190V(The controller can't work at this voltage of long duration that will break controller. Please refer to the Input voltage from PV.)

The maximum PV input power (The total power rated of PV can't be over this watt that will break the controller.)

12V system (720W)

24V system (1440W)

36V system (2100W)

48V system (2800W)

Output specification

Selectable battery type(default is Sealed)

Vented/ Sealed / Gel / NiCd / Lithium battery(defined voltage for other battery by user)

Absorption Charging Voltage

Refer to Batteries charging reference

Floating Charging Voltage

Refer to Batteries charging reference

Overcharging protection voltage

12V system (15V)

24V system (30V)

36V system (45V)

48V system (60V)

Rated output current

60A

Temperature Coefficient

±0.02%/ °C

Automatic temperature compensation

14.2V-(Max temperature-25 °C)*0.3

Output voltage ripple-peak

100mv

Output voltage accuracy

40 °C

Fan-off temperature
