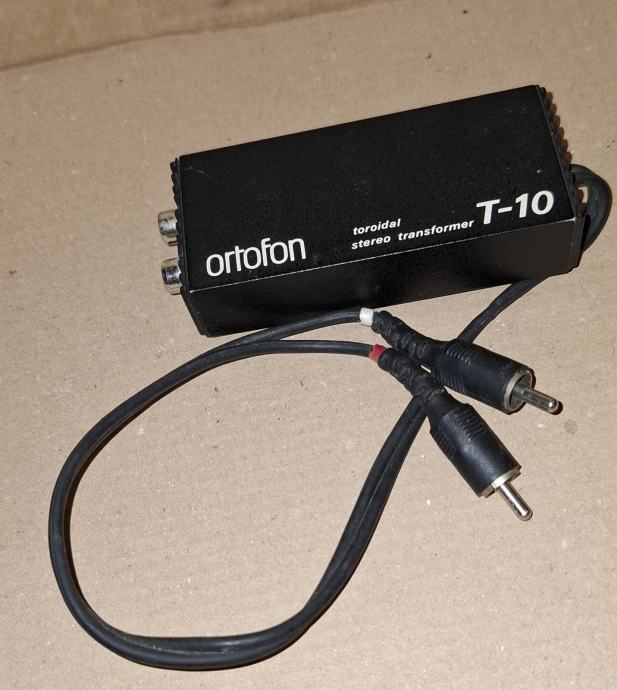

Ortofon T-10 Coil Transformer gramofonski prilagoditveni transformator
- Cena
- 150 €
Šifra oglasa: 14818277
Osnovne informacije
- Vrsta ponudbe
- Prodam
- Lokacija
- Posavska, Brežice, Brežice
- Stanje
- rabljeno
Opis oglasa
031337262, lahko pošljem
It has been designed to match cartridges with an internal impedance of 2 to 4 ohm per channel.
The unit has a wide, flat frequency response and low phase shift.
There is essentially no distortion in the audible range, and wide band characteristics permit a good transient performance.
The T-10 output cables connect directly to the phono input sockets of the associated main amplifier.
Specifications
Type of unit: transformer
Pick up impedance: 2 to 4 ohm
Output loading: 47k ohm / 120pf
Frequency response: 20Hz to 45kHz
Phase linearity: +-18 degrees
Gain: 32dB
Channel balance: 0.2dB
Channel separation: 50dB
Transformer type: toroidal
Shielding: permalloy
Dimensions: 40 x 20 x 90mm
It has been designed to match cartridges with an internal impedance of 2 to 4 ohm per channel.
The unit has a wide, flat frequency response and low phase shift.
There is essentially no distortion in the audible range, and wide band characteristics permit a good transient performance.
The T-10 output cables connect directly to the phono input sockets of the associated main amplifier.
Specifications
Type of unit: transformer
Pick up impedance: 2 to 4 ohm
Output loading: 47k ohm / 120pf
Frequency response: 20Hz to 45kHz
Phase linearity: +-18 degrees
Gain: 32dB
Channel balance: 0.2dB
Channel separation: 50dB
Transformer type: toroidal
Shielding: permalloy
Dimensions: 40 x 20 x 90mm
