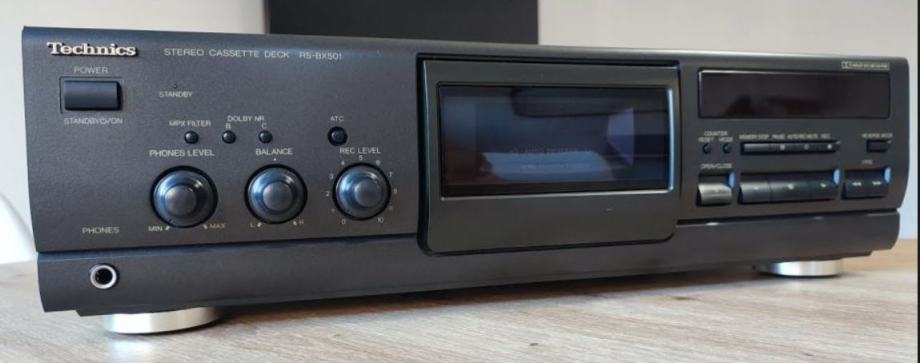

Kasetofon Technics RS-BX501

Prodam lepo ohranjen kasetofon Technics RS-BX501.
Servisiran in normalno delujoč.

Technical data:

Bandspeed: 4,8 cm/s
Synchronization fluctuation: 0.07 % (WRMS), +-0.2% (DIN)
Frequency response:
30 - 16,000 Hz Type I + II (DIN)
30 - 17,000 Hz Type IV Metal (DIN)

Signal-to-noise ratio: 66 dB (Dolby B- mode), 74 dB (Dolby C- mode)
Input sensitivity: 100 mV/ 47 kOhm
Output voltage/ impedance: 500 mV/ 500 Ohm
Headphones: 190 mV (8 Ohm)
load impedance: 8 - 600 Ohm

Bias frequency: 80 Khz

Equipment and functions

2 motors, one of which is used as a servo motor for the cassette tray and turning the head carriage.
Auto reverse playback,
Cassette recording, cassette playback,
Headphone jack, noise reduction.
Computer-controlled tape measuring function ATC with 3 measuring points for optimum adjustment to the respective tape material.
There is: 1st measurement of bias adjustment, 2nd equalizer adjustment, 3rd level adjustment.
At the end, it could also indicate, for example, that the cassette is bad, or the heads are very dirty, etc.
Switchable auto reverse function (tape does not need to be reversed at the end).
Multi-display display to show the functional status as well as the level of playback
All mechanical functions and the cassette compartment are switched electrically
Tape counter in counting mode/ real time in minutes and seconds,
Memory function for marking as well as finding certain tape positions
Automatic title search TPS
Turbo rewind speed (switching from slow to fast and vice versa), approx. 50 s (C-60)

Dolby B and Dolby C noise reduction (optional)
Dolby HX-Pro dynamic enhancement system
Recording-playback head: Permalloy 1x
Erase head: 2-split ferrite head
Auto Rec Mute
Auto Reverse. Play both sides without turning the tape over, up to 8 times.
Dolby B, C, HX-Pro
MPX Filter, (for high quality FM recording)
Servo (motorized) loading,
Level control,
Separate balance control,
2 motor drive with logic control,
TPS (Tape Program Sensor) track search,
ATC Auto Tape Calibration (calibration computer).
Electronic tape counter

Remarks
Very well equipped auto reverse cassette deck, the last well-known auto reverse deck that Technics produced.
Simple Logic drive
In the course of many years, plastic parts on the turntable, such as the base for the head carriage can warp, also the sound head can become misaligned.
