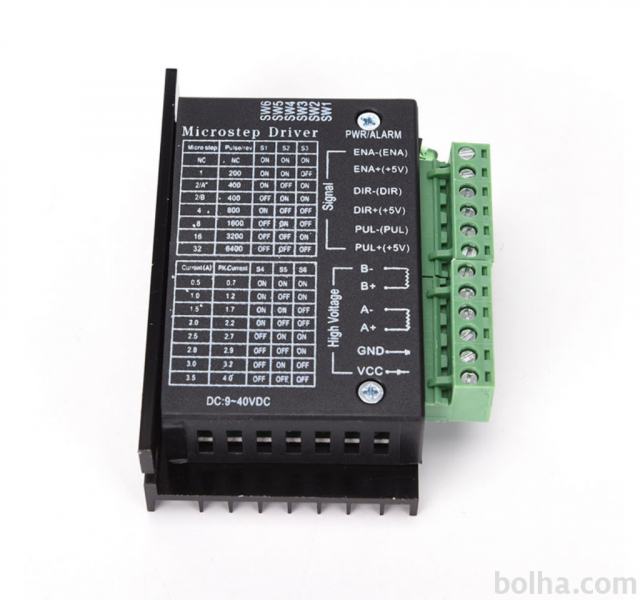

Driver (gonilnik) TB6600 za koračni motor

Prodam TB6600 driverje za koračni motor. Driver omogoča microstepping do 1/32, maksimalen tok 3,5 A.

https://www.nkxmotor.si/shop/gonilnik-koracni-motor/tb6600/tb6600-gonilnik-koracnega-motorja/


So povsem novi, nikoli uporabljeni.
Prodajam tudi ostale komponente, ki so ostale od CNC projekta, ki je padel v vodo; driverji za koračne motorje, linearna vodila, sklopke, stikala...

Možnosti uporabe: 3D printerji, CNC stroji, automatizacija, robotizacija, instrumenti, laserska oprema, skenerji.

Cena posameznega driverja je 15 evrov.
Kontakt: 031 326 958
-------------------------
Karakteristike:
Function:
PWM Chopper Type bipolar stepper motor driver IC
1 9 V – 42 V DC power supply
2 H Bridge; dipolar stepper motor (constant phase flow)
3. max. 4.0 one of the eight types of output current
5 input signal high speed Photoelektrischen insulation
6 common Anodestandard pulse interface
10 built-in thermal protection and are protected from over-voltage.
2 phase stepper motor can control Forward and reverse functions, with 1 – 2, W1/2, 2 x W1/2/4/W1/2 phase Excitation mode.
Only the clock pulse signal can be switched from Two-Step bipolar stepper motor working to access, low vibration, high efficiency.
IC parameters:
Single chip bipolar sine Micro Step Stepper Motor Driver
The new BiCD 0.13 Nm process
Up to 42 V
Resistance (a +): 0.4
?The forward and reverse rotation control
5 choices of divider (1/1, 1/2, 1/4, 1/8, 1/16,1/32)
