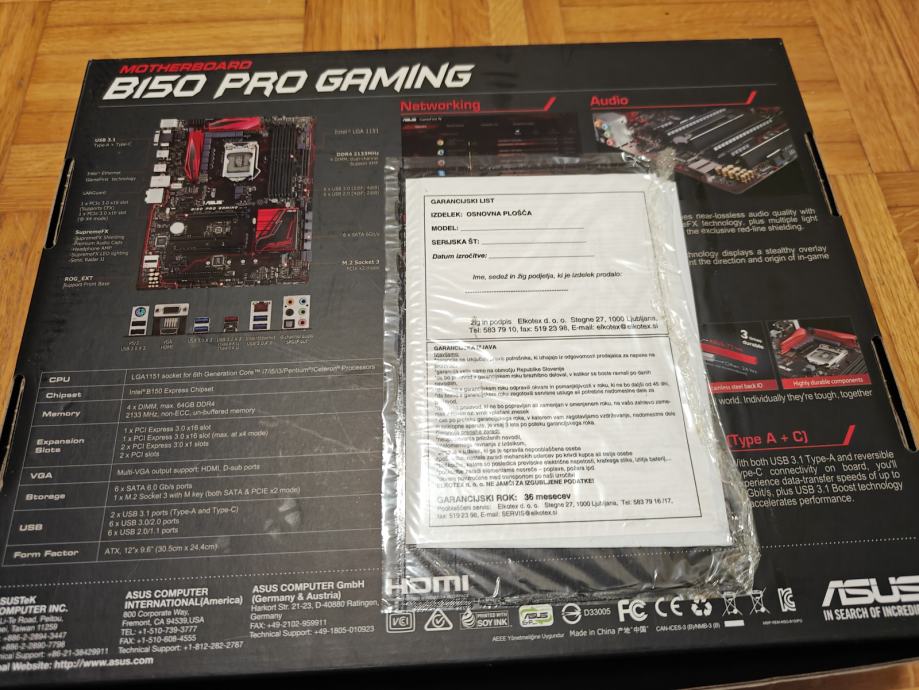

Matična plošča Asus B150 pro gaming

Prodam matično ploščo. Lastnosti: Podnožje: Intel LGA1151
Čipovje: Intel B150
Pomnilnik: 4 x DIMM, max 64 GB, DDR4 2133 Mhz Non-EEC
Grafična: Podprta iz strani CPU, HDMI/RGB izhodi
Več grafična podpora: Podpira AMD quad in 2-way CrossFireX tehnologijo
Lan: Intel® I219V, 1 x Gigabit LAN Controller(s), GameFirst technology
Avdio: SupremeFX 8-Channel High Definition Audio CODEC

Razširitvena mesta:

1 x PCIe 3.0/2.0 x16 (x16 mode, )
1 x PCIe 3.0/2.0 x16 (max at x4 mode) *1
2 x PCIe 3.0/2.0 x1
2 x PCI

Zunanji priklopi:

1 x PS/2 keyboard/mouse combo port(s)
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
1 x USB 3.1 (red)Type-A
1 x USB 3.1 Type-C
4 x USB 3.0
2 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)

Notranji priklopi:

1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key design, type 2242/2260/2280/22110 storage devices support (Supports both SATA & PCIE SSD)
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 × 4 -pin)
3 x Chassis Fan connector(s) (3 × 4 -pin)
1 × 24-pin EATX Power connector(s)
1 × 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Thermal sensor connector(s)
1 x CPU OV
1 x Clear CMOS jumper(s)
1 x Water Pump header (4-pin)
1 x ROG extension (ROG_EXT) header(s)
1 × 14–1 pin TPM connector

Dodatno:

Format: ATX
Dimenzije: 30.5 × 24.4 cm
