Deckel Macho DMU 125 P hi-dyn
- Cena
- Po dogovoru
Šifra oglasa: 14334084
Osnovne informacije
- Vrsta ponudbe
- Prodam
- Lokacija
- Podravska, Selnica ob Dravi, Spodnja Selnica
- Vrsta stroja
- Rezkalni stroji CNC
- Proizvajalec
- Drugo
- Model
- DECKEL MACHO DMU 125
- Leto izdelave
- 2000
- Stanje
- rabljeno
Opis oglasa

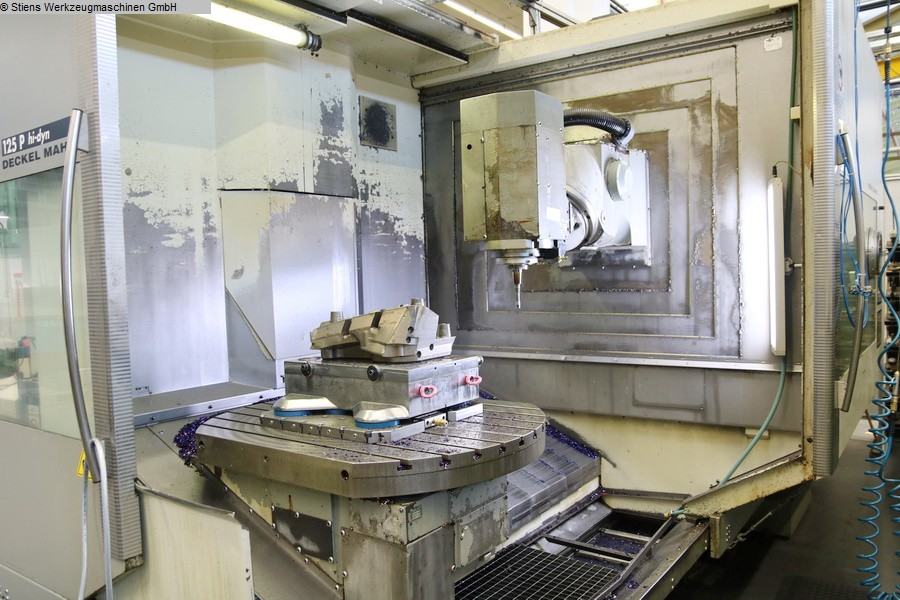

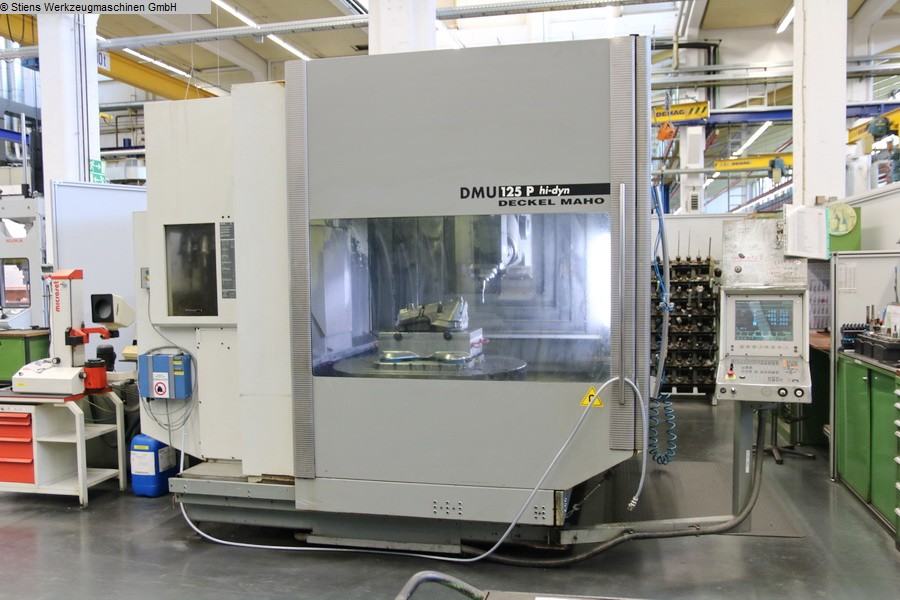

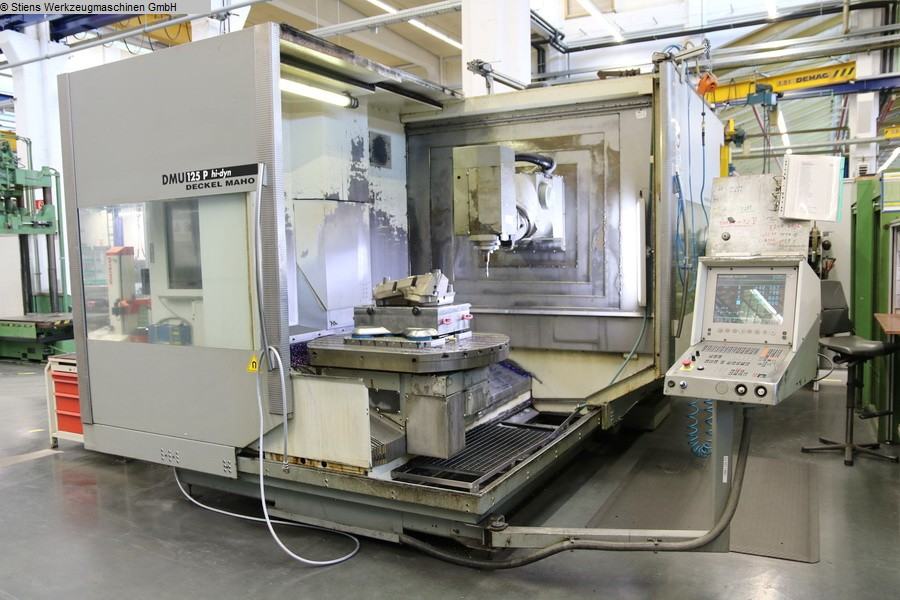

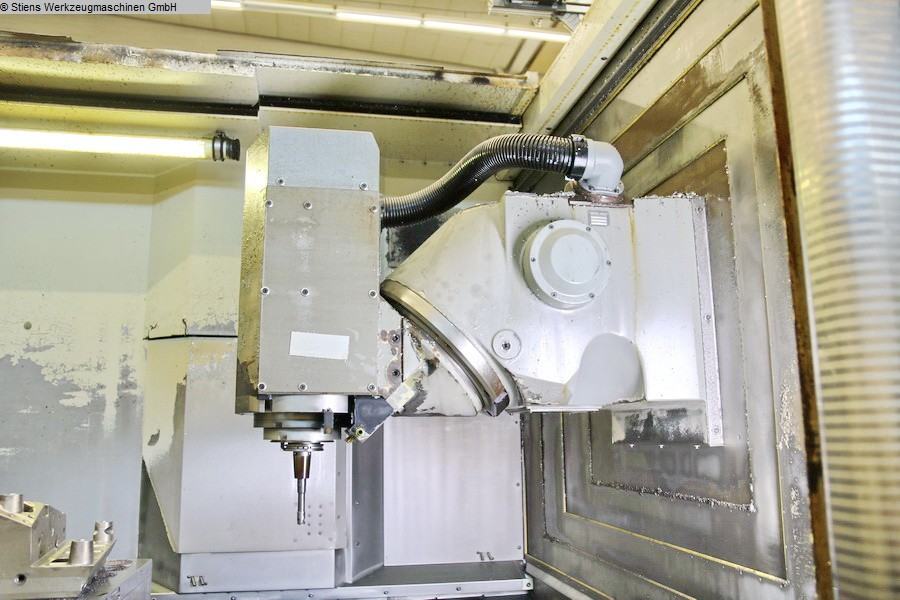

CNC - Machining-Center UniversalDECKEL MAHO - DMU 125 P hi-dyn- 4+1 Axis (5 Side-Machining)- NC-Rotary-Table / H/V-Swivel-Milling-Head - 30-pos. toolmagazine

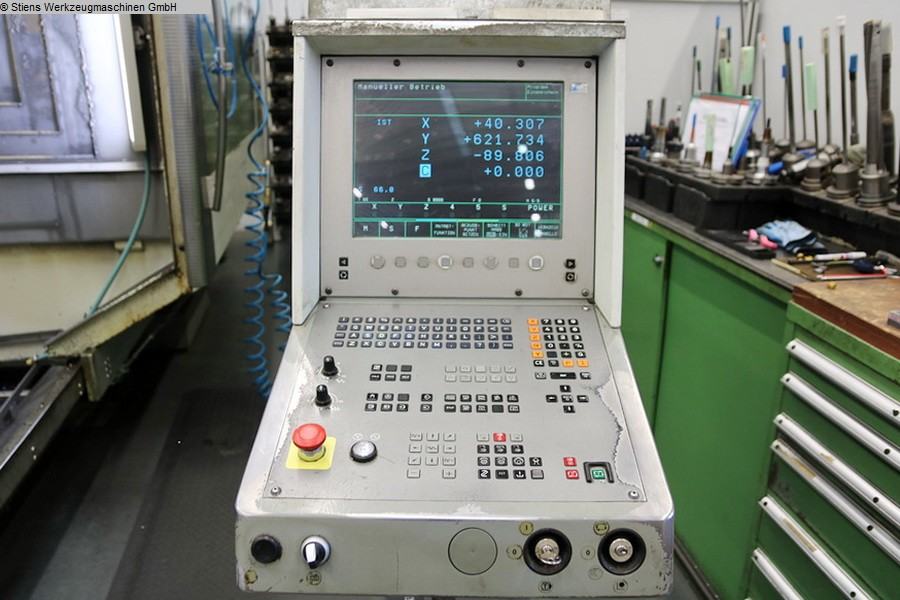

x-travel 1.250 mmy-travel 880 mmz-travel 800 mmcontrol TNC 426 Heidenhain Main spindle:turning speed range - main spindle max. 8.000 min/-1 power capacity - main spindel 15 / 10 kWmax. Torque 130 Nmtool taper SK 50swivellable H/V +/-90 ° NC-Rotary table:table diameter 1.250 x 1.000 mmmax. table load 2.000 kgB-Axis 360° / 0,001 °distance spindle center to column 900 mmnumber of T-slots 9T-slot - distance 100 mmT-slot - width 18 H7 mmcenter hole 50 H6 mmmax. Torque 3.500 Nmtable turning speeds max. 8,0 min/-1tool magazin:number of toolpositions 30 pos.max. tool diameter 110 mm
max. tool-dia with free toolbox 230 mm max. tool length 420 mm max. tool weight 20 kg tension force 15 kNtool taper SK 50change-time tool to tool 3,0 sec change-time chip to chip v: 11 / h: 16 sec feeds:rapid traverse ( X / Y / Z ) 40 m/min feed speeds 0 - 15.000 mm/min total power requirement 55 kVA weight of the machine ca. 12,2 t dimensions of the machine ca. 7,0 x 6,0 x 3,0 m DocumentsChip conveyorCoolantsystemhigh pressure coolant 40 barthrough spindle coolantelektr. hand wheelNC-rotary tableturning milling head 90° / H/VTool Magazine 30 pos.test probe M&H - RMP 2000hydraulic systemoil mist extractionwork light
x-travel 1.250 mmy-travel 880 mmz-travel 800 mmcontrol TNC 426 Heidenhain Main spindle:turning speed range - main spindle max. 8.000 min/-1 power capacity - main spindel 15 / 10 kWmax. Torque 130 Nmtool taper SK 50swivellable H/V +/-90 ° NC-Rotary table:table diameter 1.250 x 1.000 mmmax. table load 2.000 kgB-Axis 360° / 0,001 °distance spindle center to column 900 mmnumber of T-slots 9T-slot - distance 100 mmT-slot - width 18 H7 mmcenter hole 50 H6 mmmax. Torque 3.500 Nmtable turning speeds max. 8,0 min/-1tool magazin:number of toolpositions 30 pos.max. tool diameter 110 mm
max. tool-dia with free toolbox 230 mm max. tool length 420 mm max. tool weight 20 kg tension force 15 kNtool taper SK 50change-time tool to tool 3,0 sec change-time chip to chip v: 11 / h: 16 sec feeds:rapid traverse ( X / Y / Z ) 40 m/min feed speeds 0 - 15.000 mm/min total power requirement 55 kVA weight of the machine ca. 12,2 t dimensions of the machine ca. 7,0 x 6,0 x 3,0 m DocumentsChip conveyorCoolantsystemhigh pressure coolant 40 barthrough spindle coolantelektr. hand wheelNC-rotary tableturning milling head 90° / H/VTool Magazine 30 pos.test probe M&H - RMP 2000hydraulic systemoil mist extractionwork light
