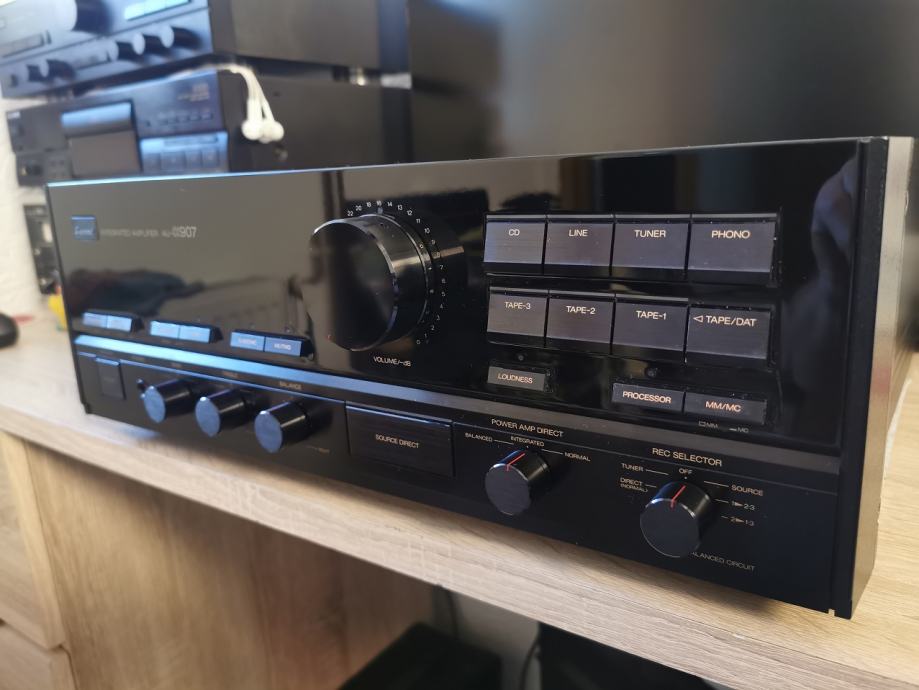

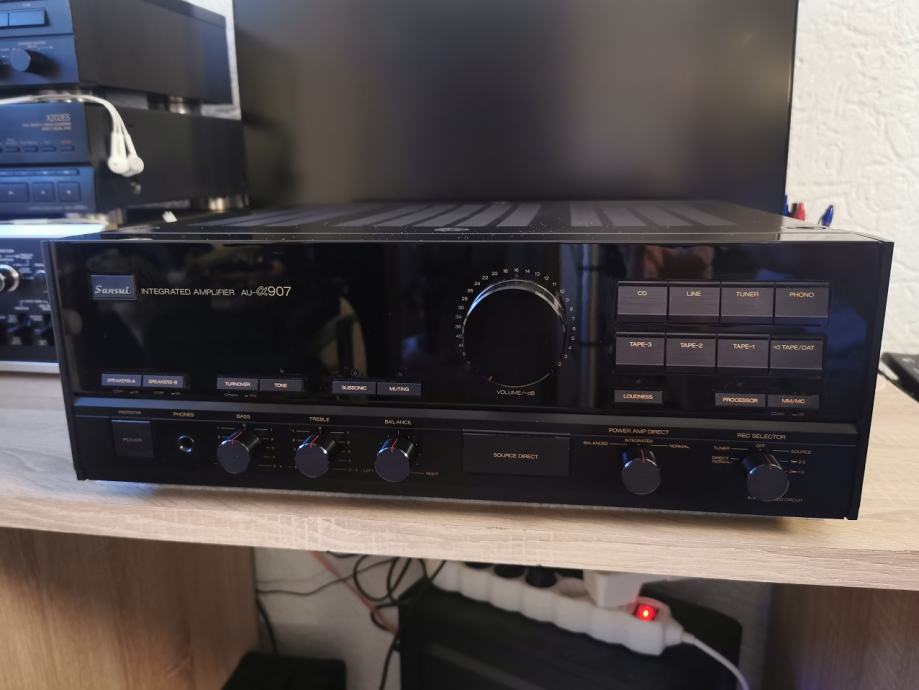

Sansui AU-Alpha 907

odlično ohranjen
napajanje 100V

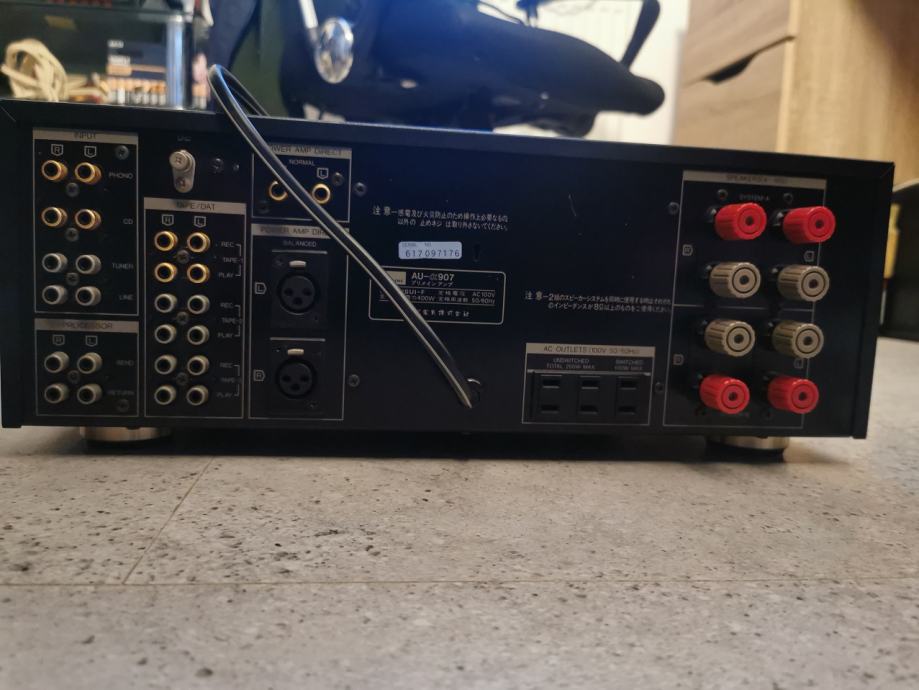

zadnja slika z neta
040 528 536
BREZ SMS-ov!!!


Model Rating
Type Integrated DC amplifier
Power Amplifier Unit
Effective output (10 Hz to 20 kHz, both channels driven) 190W + 190W (6 Ω)
180W + 180W (8 Ω)
Total harmonic distortion factor (at effective output) 0.003% or Less (8 Ω)
Cross modulation distortion factor 0.003% or Less (8 Ω)
Damping factor 100 (6 Ω)
Frequency Response (1W) DC ~ 300 khz + 0 -3dB
Input Sensitivity / Impedance (1 kHz) Normal : 1V/5k Ω
Balance : 1V/5k Ω
Signal-to-noise ratio (A network) 120 dB or more
TIM (SAWTOOTH) Below the measurement limit
Slew rate ± 200 V / μ sec
Rise time 0.5 μ sec
Equalizer Section
Input Sensitivity / Impedance (1 kHz) Phono MM : 2.5mV/47k Ω
Phono MC : 300 μ V/100 Ω
CD, Tuner, Line, Processor : 150mV/47k Ω
Tape play/DAT-1, 2, 3 : 150mV/47k Ω
Phono maximum allowable input
(New IHF, THD 0.01%) MM:210mV
MC:21mV
Frequency Response (at 1W) Phono MM : 20 Hz to 20 kHz ± 0.2 dB
CD, Line, Tape play/DAT-1, 2, 3 : 1 hz ~ 300 khz + 0 -3dB
SN ratio (at 1W) Phono MM : 88 dB or more
Phono MC : 70 dB or more
Tuner, Line, CD : 110 dB or higher
Tape play/DAT-1, 2, 3 : 110 dB or more
Tone control Bass : + / - 5 dB (50 Hz)
Treble : ± 5 dB (15 kHz)
Turnover frequency 75 hz, 150 hz, 7 khz
Subsonic filter 16 Hz (-3dB, 6dB/oct.)
Loudness + 8 dB at 50 Hz, + 6 dB at 10 kHz

Rated power consumption (Electrical Appliance and Material Control Law) 370W
External dimensions Width 448x Height 160x Depth 441 mm
Weight 28.0kg
