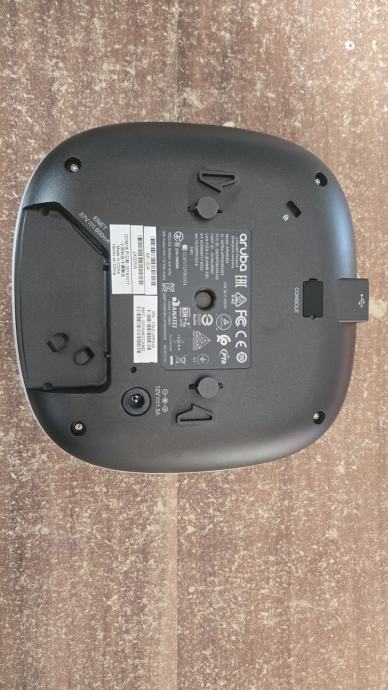

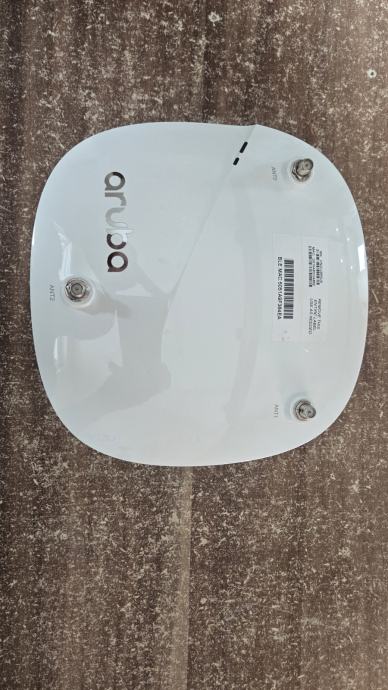

Aruba Ip - 304

Model:
AP-304
APIN0304
PN - JX935A

• Resolve sticky clients with MU-MIMO-aware ClientMatch
• Maximum concurrent data rate of 1,300 Mbps in the 5GHz band and 300 Mbps in the 2.4GHz band (for an aggregate peak data rate of 1.6Gbps)
• Participates in Aruba’s Dynamic Segmentation solution
• Includes integrated Bluetooth Low Energy (BLE) radio, for advanced location and indoor wayfinding

AP-304 (controller-managed) and IAP-304 (Instant):
- 5GHz 802.11ac 3x3 MIMO (1,300 Mbps max rate) and 2.4GHz 802.11n 2x2 MIMO (300 Mbps max rate) radios, with a total of three dual-band RP-SMA connectors for external antennas

AP-304/IAP-304: Three RP-SMA connectors for external dual band antennas. Worst-case internal loss between radio interface and external antenna connectors (due to diplexing circuitry): 0.8dB in 2.4GHz and 1.6dB in 5GHz

AP type: Indoor, dual radio, 5GHz 802.11ac 3x3 MIMO and 2.4GHz 802.11n 2x2 MIMO
• Software-configurable dual radio supports 5GHz (Radio 0) and 2.4GHz (Radio 1

• 5GHz: Three spatial stream Single User (SU) MIMO for up to 1,300 Mbps wireless data rate to individual 3x3 VHT80 client devices
• 5GHz: Two spatial stream Multi User (MU) MIMO for up to 867 Mbps wireless data rate to up to two (1x1 VHT80) MU-MIMO capable client devices simultaneously
• 2.4GHz: Two spatial stream Single User (SU) MIMO for up to 300 Mbps wireless data rate to individual 2x2 HT40 client devices
• Support for up to 256 associated client devices per radio, and up to 16 BSSIDs per radio
