Osnovne informacije
- Vrsta ponudbe
- Prodam
- Lokacija
- Gorenjska, Škofja Loka, Škofja Loka
- Stanje
- rabljeno
Opis oglasa

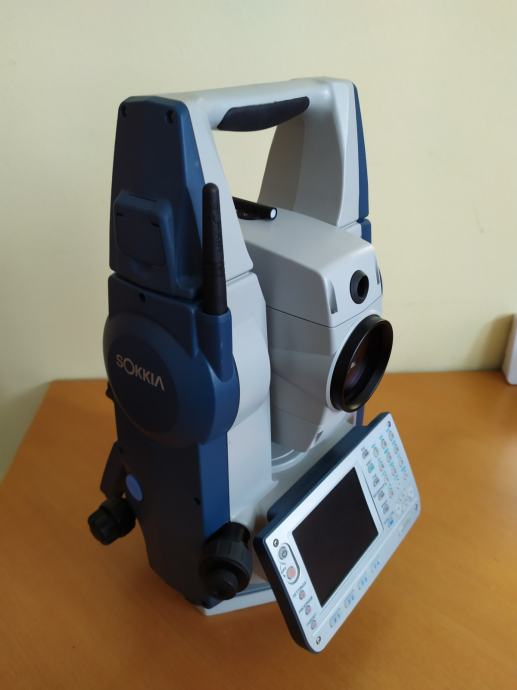

Prodam totalno postajo SOKKIA SET3X z laserskim razdaljemerom in potrebno opremo.
SETX Reflectorless Total Stations
Model SET3X
Laser output Reflectorless mode: Class 3R (max. 5W)
Prism / Sheet mode: Class 1 equivalent (max. 0.22W)
Measuring range Reflectorless*1 0.3 to 500m (1 to 1,640ft.)
With reflective sheet target*2 RS90N-K: 1.3 to 500m (4.3 to 1,640ft.)
With 1 AP prism 1.3 to 5,000m (4.3 to 16,400ft.), to 6,000m (19,680ft.) under good conditions
Distance accuracy Reflectorless*1 (3 + 2ppm u00d7 D)mm: 0.3 to 200m (1 to 650ft.)
(5 + 10ppm u00d7 D)mm: over 200m to 350m (over 650 to 1,140ft.)
(10 + 10ppm u00d7 D)mm: over 350m to 500m (over 1,140 to 1,640ft.)
With reflective sheet target*2 (3 + 2ppm u00d7 D)mm
With prism
(2 + 2ppm u00d7 D)mm
Angle accuracy H&V 3″ / 1mg
Display resolutions (selectable) 1″ / 5″, 0.0002 / 0.001gon, 0.005 / 0.02mil
Operating system Windows CE
Data storage Internal memory 64MB (more than 1MB available for data)
Memory card drive Compact Flash Type II (3.3V, max. 4GB)
SD card (with CF adapter, max. 1GB)
Interface Serial RS-232C (baud rate: 1,200 to 38,400bps), USB1.1 Host (Type A), Client (Type mini B)
Bluetooth wireless modem Ver.2.0, Class 1 (Models without Bluetooth modems are available as factory options)
Laser-pointer function Using red laser beam for distance measurement. (does not work simultaneously with the Guide Light)
Guide light Two-color LEDs, single aperture, Class 1 LED Product
Dust and water protection IP65 (IEC 60529:2001) (RS-232C serial cable or external power cable connection maintains IP65)
Weight with handle and battery Approx. 7.0kg (15.4lb.) With optional F2 control panel: approx. 7.1kg (15.7lb.)
SETX Reflectorless Total Stations
Model SET3X
Laser output Reflectorless mode: Class 3R (max. 5W)
Prism / Sheet mode: Class 1 equivalent (max. 0.22W)
Measuring range Reflectorless*1 0.3 to 500m (1 to 1,640ft.)
With reflective sheet target*2 RS90N-K: 1.3 to 500m (4.3 to 1,640ft.)
With 1 AP prism 1.3 to 5,000m (4.3 to 16,400ft.), to 6,000m (19,680ft.) under good conditions
Distance accuracy Reflectorless*1 (3 + 2ppm u00d7 D)mm: 0.3 to 200m (1 to 650ft.)
(5 + 10ppm u00d7 D)mm: over 200m to 350m (over 650 to 1,140ft.)
(10 + 10ppm u00d7 D)mm: over 350m to 500m (over 1,140 to 1,640ft.)
With reflective sheet target*2 (3 + 2ppm u00d7 D)mm
With prism
(2 + 2ppm u00d7 D)mm
Angle accuracy H&V 3″ / 1mg
Display resolutions (selectable) 1″ / 5″, 0.0002 / 0.001gon, 0.005 / 0.02mil
Operating system Windows CE
Data storage Internal memory 64MB (more than 1MB available for data)
Memory card drive Compact Flash Type II (3.3V, max. 4GB)
SD card (with CF adapter, max. 1GB)
Interface Serial RS-232C (baud rate: 1,200 to 38,400bps), USB1.1 Host (Type A), Client (Type mini B)
Bluetooth wireless modem Ver.2.0, Class 1 (Models without Bluetooth modems are available as factory options)
Laser-pointer function Using red laser beam for distance measurement. (does not work simultaneously with the Guide Light)
Guide light Two-color LEDs, single aperture, Class 1 LED Product
Dust and water protection IP65 (IEC 60529:2001) (RS-232C serial cable or external power cable connection maintains IP65)
Weight with handle and battery Approx. 7.0kg (15.4lb.) With optional F2 control panel: approx. 7.1kg (15.7lb.)
