Optični pretvornik TP Link M100CM Multimode FO-UTP do 2km

Multimode optični pretvornik proizvajalca TP Link M100CM optika 2x do 2km, 1x RJ45 10/100Mbps in vlakno Tx - Rx

•Model TP Link M100CM
•Two Multimode 50/125μm, 62.5/125μm 2km
•Standard IEEE 802.3u, IEEE 802.3
•Full Duplex Flow Control
•RJ-45 konektor UTP 5/5e EIA/TIA-568 100 Ω
•Priključek Tx/Rx - 1310 nm
•Konektor 2x SC, LED PWR, LINK, RX
•Prenos 10/100Mbps

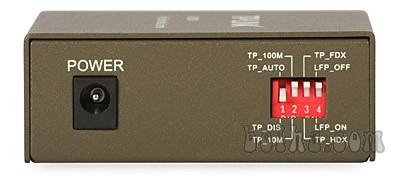

•Napajanje DC 9V
•Dimenzija 10 x 8 x 3 cm
•Teža 0.4 kg

•1 x Ethernet port 10/100 Mbps (RJ-45)
•maximum transmission distance - 2 km
•transmission via two multimode fibers
•LED indicators showing operating status
•easy installation (plug and play)

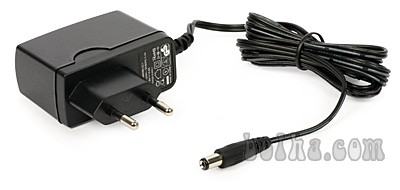

•power supply included

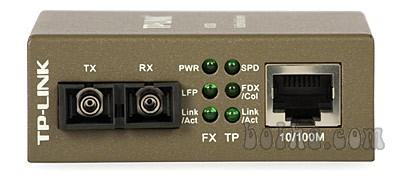

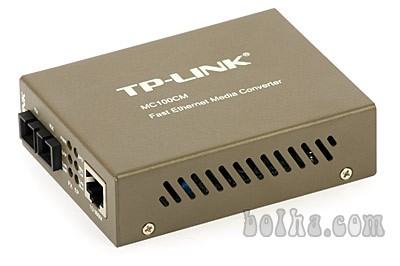

Media converter TP-LINK M100CM is a reliable device allowing to transmit Fast Ethernet signals through two multimode optical fibers over distances up to 2 km. It is equipped with two SC connectors, one for transmitting the signal (TX), second for receiving it (RX). The optical signals are transmitted and received in the second transmission window (1310 nm).
TP-LINK devices have MDI/MDIX auto detection feature and automatically find and set the fastest connection speed and mode. "Store and forward" mechanism allows to verify the received data using checksum function.

TP-LINK media converters are fully compatible with IEEE 802.3, IEEE 802.3u, IEEE 802.3x standards. Their installation is very simple thanks to "Plug and Play" feature. The LED indicators show current operating status.
