Optični pretvornik Ultimode M-023M Multimode FO-UTP 2xSC do 2km

Multimode optični pretvornik proizvajalca Ultimode M-023M optika 2x do 2km, 1x RJ45 10/100Mbps in vlakno Tx - Rx

•Model ULTIMODE M-023M
•Two Multimode 50/125μm, 62.5/125μm 2km
•Standard IEEE 802.3u, IEEE 802.3u
•RJ-45 konektor UTP/STP do 100m
•Priključek Tx/Rx - 1310 nm
•Konektor 2x SC, LED diode
•Prenos 10/100Mbps
•Napajanje 5V/2A
•Teža 0.4 kg

•1 x Ethernet port 10/100 Mbps (RJ-45)
•maximum transmission distance - 2 km
•transmission via two multimode fibers
•LED indicators showing operating status
•easy installation (plug and play)
•power supply included

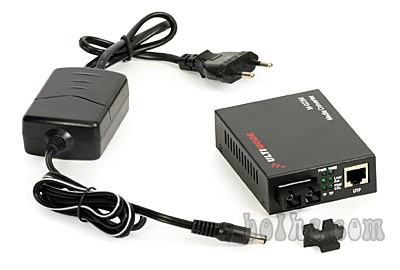

ULTIMODE M-023M is reliable media converter enabling the transmission of Fast Ethernet data signal in two multimode optical fibers at distances up to 2 km. The media converter has two SC connectors used to transmit (Tx) or receive (Rx) the signal. Optical signal is transmitted and received in the second transmission window of 1310 nm.
ULTIMODE devices have MDI/MDIX auto detection feature and automatically find and set the fastest connection speed and mode. "Store and forward" mechanism allows to verify the received data using checksum function.

ULTIMODE media converters are fully compatible with IEEE 802.3 and IEEE 802.3u standards. Their installation is very simple thanks to "Plug and Play" feature. The LED indicators show current operating status. Durable laser diode with Fabry-Perot resonator ensures the mean-time-between-failure (MTBF) at least of 100000 hours
