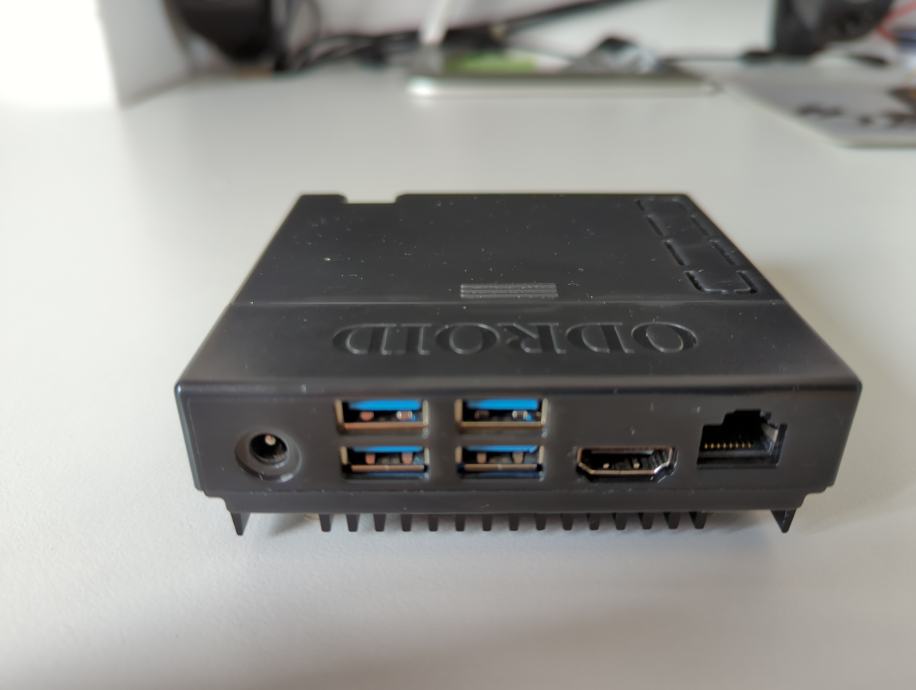

Odroid N2+ 4GB ram

Uporabljal za KODI - Libreelec v dnevni sobi, ker sem želel boljši DAC sem zamenjal za Khadas. Ventilatorja ne potrebuje za normalno delo saj ima pasivno hlajenje, je pa "zver" med AMD compi.
- Odroid N2+
- ohišje
- daljinec (original)

ODROID-N2 is a new generation single board computer that is more powerful, more stable, and faster performing than N1. The main CPU of the N2 is based on big.Little architecture which integrates a quad-core ARM Cortex-A73 CPU cluster and a dual core Cortex-A53 cluster with a new generation Mali-G52 GPU. Thanks to the modern 12nm silicon technology, the A73 cores runs at 1.8Ghz without thermal throttling using the stock metal-housing heatsink allowing a robust and quiet computer. The CPU multi-core performance is around 20% faster and the GPU is 10% faster than the N1. The N2’s DDR4 RAM is running at 1320Mhz with 1.2volt low power consumption. The large metal housing heatsink is designed to optimize the CPU and RAM heat dissipation and minimize throttling. The CPU is placed on the bottom side of the PCB to establish great thermal characteristics.

Amlogic S922X (4x Cortex-A73 @ 2.2GHz, 2x Cortex-A53 @ 1.9GHz); 12nm fab; Mali-G52 GPU with 6x 846MHz EEs
2GB or 4GB DDR4 (1320MHz, 2640MT/s) 32-bit RAM
eMMC socket with optional 8GB to 128GB
MicroSD slot with UHS-1 SDR104 support
8MB SPI flash with boot select switch and Petitboot app
Gigabit Ethernet port (Realtek RTL8211F); up to 1Gbps
HDMI 2.1 port for up to 4K@60Hz with HDR, CEC, EDID
Composite video jack with stereo line-out and 384Khz/32bit audio DAC
SPDIF audio via 40-pin GPIO
4x USB 3.0 host ports (340MB/s typical)
Micro-USB 2.0 OTG port (no power)
Integrated serial console interface and Fan connector
40-pin GPIO header (25x GPIO, 2x i2C, 2x ADC, 6x PWM, SPI, UART, SPDIF, various power signals, etc.)
12V/2A adapter recommended; consumption: 1.8W (idle) to 5.5W (stress) - Accepts DC 7.5V ~ 18V (up to 25W)
