HP4101 = E446 = RENS1284 = H4128D, PP4101 = RES964 E443H RTP4 L496D
- Cena
- 25 €
Šifra oglasa: 15103223
Osnovne informacije
- Vrsta ponudbe
- Prodam
- Lokacija
- Posavska, Brežice, Brežice
- Stanje
- novo
Opis oglasa
NOS ELEKTRONKE
HP4101 - 20 EUR
PP4101 - 25 EUR
031 337 262

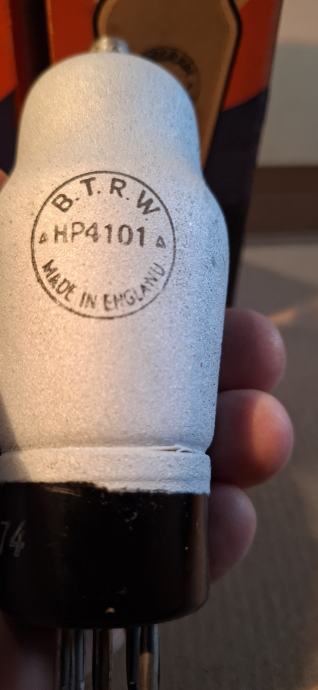

Tube type: Vacuum Pentode RF/IF-Stage
Identical to HP4101 = E446 = RENS1284 = H4128D
Similar Tubes
Normally replaceable-slightly different:
ACSP1 ; CV1124 ; HP4100 ; S430N
First Source (s)
22.Nov.1935 : Wireless World (The), London (WW, 79)
................................

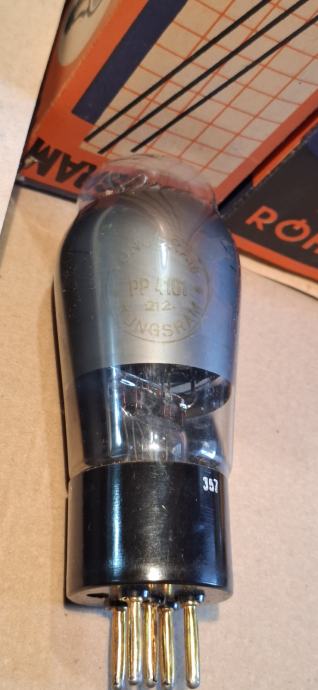

Tube type: Vacuum Pentode Power/Output
Identical to PP4101 = RES964 = E443H = RTP4 = L496D
Similar Tubes
Normally replaceable-slightly different:
DP4_Oxytron ; LAP519 ; PP4 ; T1304_RR ; W516
Other base:
AL1
First Source (s)
1933 : -- Schematic
22.Oct.1933 : Funkschau
Successor Tubes 1935 AL1

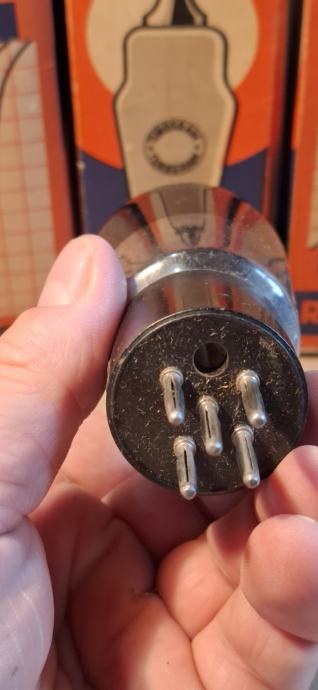

Base Europe 5-Pin , B5 (Eu O, F, O5A) 1928 (Codex=Foo)
Was used by Radio/TV-reception etc.
Filament Vf 4 Volts / If 1.1 Ampere / Direct / Specified voltage AC/DC
Description
PP4101 Tungsram = E443H Philips. By model of the very similar USA-types PZ or 47 from 1931, with the E443H Philips now introduced output pentodes in Europe with equally 250 Volts screen and plate voltage, it also brought the 7k-ohms load-standard to Europe which remained until the end of the tube era. The former E443N required 400 Vp, but extra 200 Vg2 [J.R. 2003-01-19]
HP4101 - 20 EUR
PP4101 - 25 EUR
031 337 262
Tube type: Vacuum Pentode RF/IF-Stage
Identical to HP4101 = E446 = RENS1284 = H4128D
Similar Tubes
Normally replaceable-slightly different:
ACSP1 ; CV1124 ; HP4100 ; S430N
First Source (s)
22.Nov.1935 : Wireless World (The), London (WW, 79)
................................
Tube type: Vacuum Pentode Power/Output
Identical to PP4101 = RES964 = E443H = RTP4 = L496D
Similar Tubes
Normally replaceable-slightly different:
DP4_Oxytron ; LAP519 ; PP4 ; T1304_RR ; W516
Other base:
AL1
First Source (s)
1933 : -- Schematic
22.Oct.1933 : Funkschau
Successor Tubes 1935 AL1
Base Europe 5-Pin , B5 (Eu O, F, O5A) 1928 (Codex=Foo)
Was used by Radio/TV-reception etc.
Filament Vf 4 Volts / If 1.1 Ampere / Direct / Specified voltage AC/DC
Description
PP4101 Tungsram = E443H Philips. By model of the very similar USA-types PZ or 47 from 1931, with the E443H Philips now introduced output pentodes in Europe with equally 250 Volts screen and plate voltage, it also brought the 7k-ohms load-standard to Europe which remained until the end of the tube era. The former E443N required 400 Vp, but extra 200 Vg2 [J.R. 2003-01-19]
