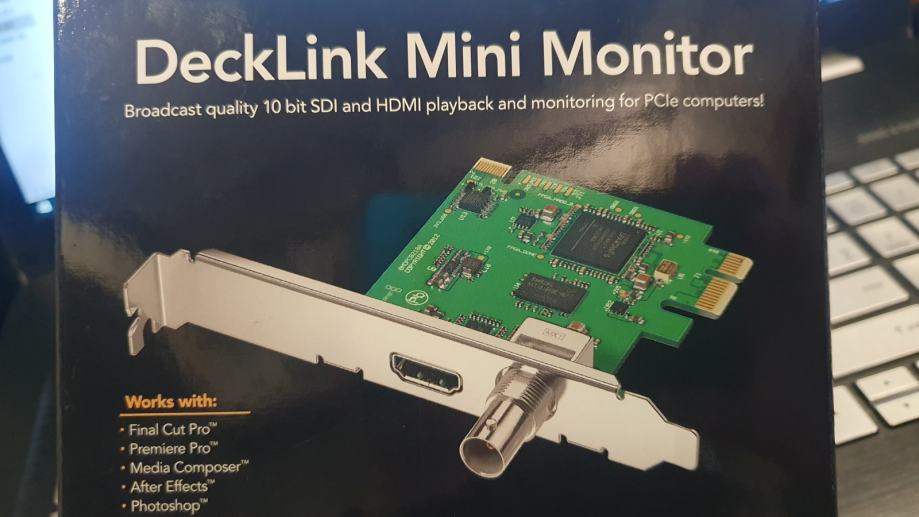

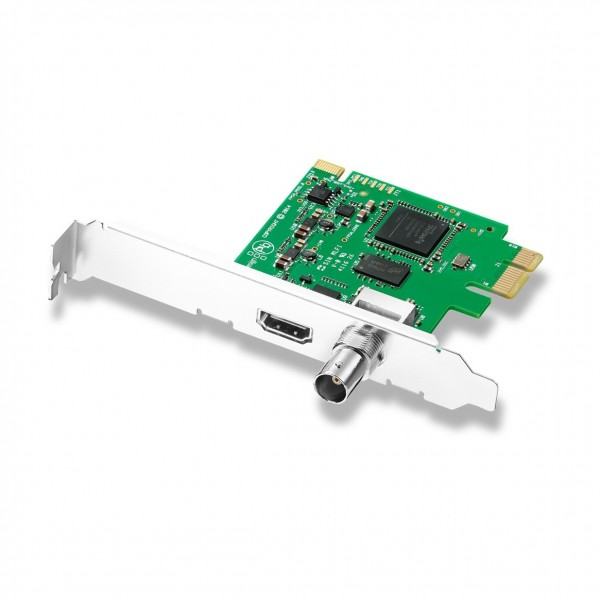

BLACKMAGIC DeckLink Mini Monitor

Prodam omenjeno kartico 2x rabljeno, kupljena aprila 2022 - KOT NOVA.

Description
DeckLink Mini Monitor allows you to monitor uncompressed 10-bit video directly on your computer. It offers SDI and HDMI outputs for connection to any TV or monitor, and automatically switches between all common SD and HD formats. DeckLink Mini Monitor is the perfect solution for monitoring editing operations from the comfort of your current program. It also includes two PCI Express slot shields, one full profile and one low profile.


Connections
SDI video outputs
1 x SD/HD 10 bit switchable

SDI audio outputs
8 integrated channels in SD and HD

HDMI video outputs
1 x HDMI 1.4 type A connector

HDMI audio outputs
8 integrated channels in SD and HD

computer interface
1-path PCI Express, compatible with 1, 4, 8, and 16-path PCI Express slots

DeckLink Mini Monitor
Compatible codecs
AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ , Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, 4:2:2 uncompressed 8-bit, 4:2:2 uncompressed 10-bit

Software
Software included
Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility, and Blackmagic drivers on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic drivers for Linux

Internal software update
Firmware built into the driver. It loads at system startup or through the update utility

Physical installation
1-path PCI Express, compatible with 1, 4, 8, and 16-path PCI Express slots on Mac OS, Windows, and Linux. Mac OS operating systems require a Mac Pro with PCI Express slots. For all system requirements see the support page

Software applications
DaVinci Resolve
Fusion
Final Cut Pro X
Adobe Premiere Pro CC
Avid Media Composer
Adobe After Effects CC
Avid ProTools
Steinberg Cubase
Steinberg Nuendo
Adobe Photoshop CC

Compatibility with other programs:
The Foundry Nuke, Grass Valley Edius, Sony Catalyst Production Suite, Tools On Air (Just: Play, Live, In) Softron MovieRecorder and MReplay, Adobe Flash Media Live Encoder, Telestream Wirecast, Livestream Producer, Resolume Arena, Magix Vegas Pro and Movie Edit Pro Premium, Corel VideoStudio Pro, CyberLink PowerDirector, Vidblaster X and Studio and Broadcast, Uniplay One and CG, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity and InfoCaster, DevTek Easy Media Suite, Metus Ingest, Boinx Software MimoLive, Cinegy Capture Pro, vMix Live, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard & Coral CG, Glookast Capturer, Open Broadcaster Software Studio, Nautilus NEMO3D, Burst Video WebClip2Go & [REC]Marker, Zoom.


Video standards
SD video standards
525i59.94 NTSC, 625i50 PAL

HD video standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60

Compliance with the SDI standard
SMPTE 259M and SMPTE 292M

SDI metadata compatible
RP188/SMPTE 12M-2 and closed captions

Audio sampling
Sampling frequency of television standard of 48kHz and 24 bit

Color Accuracy
8 and 10 bits

Video sampling
4:2:2 YUV

Color space
REC 601, REC 709

HDMI setup
Automatic configuration based on the connected monitor

HDMI resolution
Pixel by pixel in HD on connected device

Compatibility with different types of frequency
SDI and HDMI video connections switch between SD and HD

Processing
Color space conversion
Real-time conversion hardware

Downconversion (HD/SD)
Video playback conversion software

Cross Conversion (HD)
Via software from 720HD to 1080HD being played

Real-time effects
DaVinci Resolve and Final Cut Pro X internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects
