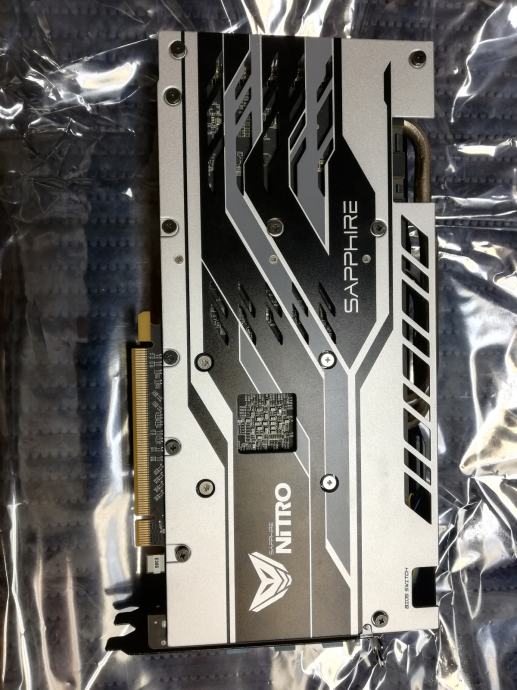

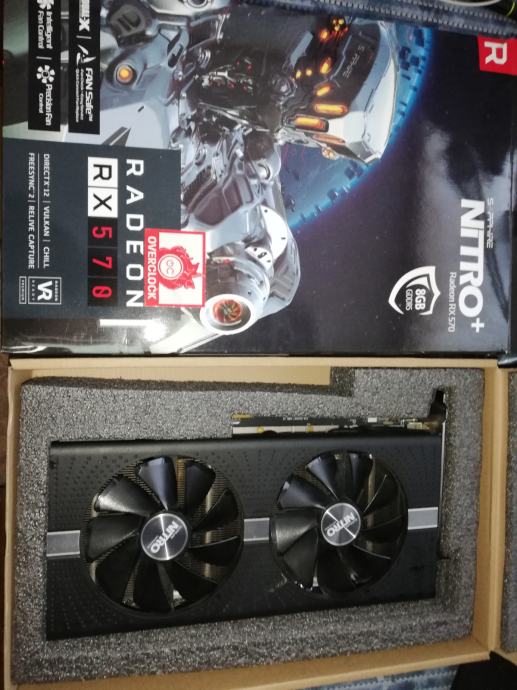

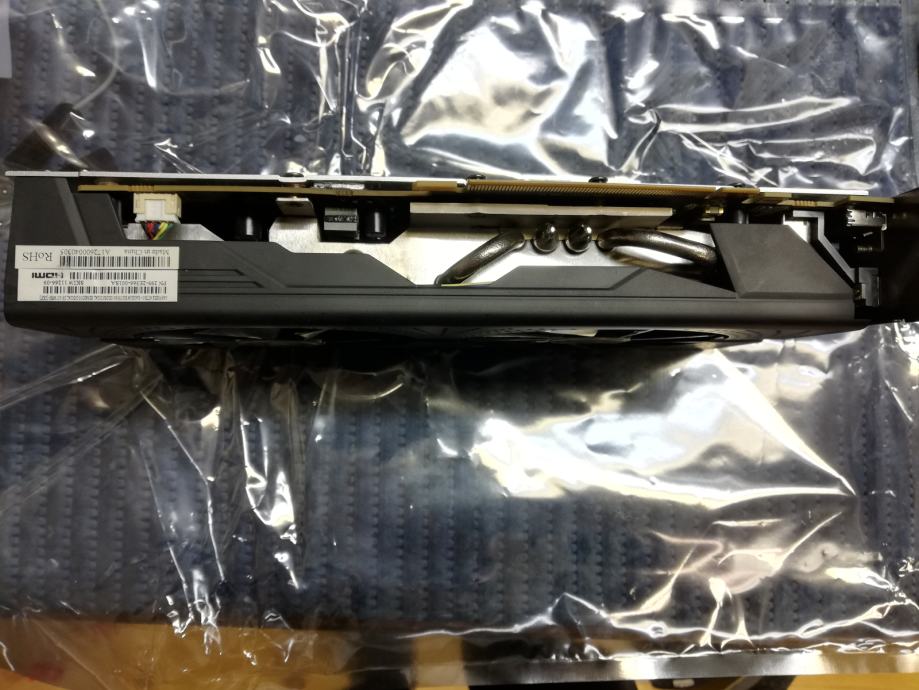

Sapphire NITRO+ RX 570 8 GB

GPU
RX 570, 14 nm FinFET
4th Graphics Core Next (GCN)

Engine Clock
Up to 1340 MHz, Boost

Stream Processors
2304

Memory Size/Bus
8GB GDDR5/256-bit

Memory Clock
7000 MHz effective
Displays
Maximum 5 Outputs

Interface
PCI-Express 3.0

Resolution
DisplayPort: 5120×2880@60Hz
HDMI: 4096×2160@60Hz
DVI:2560x1600@60Hz
Output
1x DVI-D
2x HDMI
2x DisplayPort 1.4


BIOS Support
UEFI
API
OpenGL® 4.5
OpenCL 2.0
DirectX® 12
Shader Model 5.0
Game Index
1080p gaming

Sapphire Features
NITRO Fan Check
NITRO Quick Connect System
NITRO Glow RGB LED
NITRO CoolTech(NCT)
Intelligent Fan Control III
Precision Fan Control
Robust VRM Cooling
Long Life Polymer Capacitor
Fuse Protection
Dual UEFI


AMD Features
Radeon™ VR Ready Premium
Radeon™ Software
Radeon™ FreeSync Technology
AMD LiquidVR™ Technology
4th Gen GCN Architecture
Radeon™ Chill
Radeon™ ReLive DirectX® 12 Technology
AMD Eyefinity Technology (Gaming)
AMD App Acceleration
AMD CrossFire™ Technology
AMD CrossFire™ (Bridgeless)
3rd Gen 14nm Process Technology
OpenCL 2.0
OpenGL 4.5
AMD PowerTune Technology
TrueAudio Next
Unified Video Decoder (UVD)
Video Code Engine (VCE)
Virtual Super Resolution
The Vulkan® API

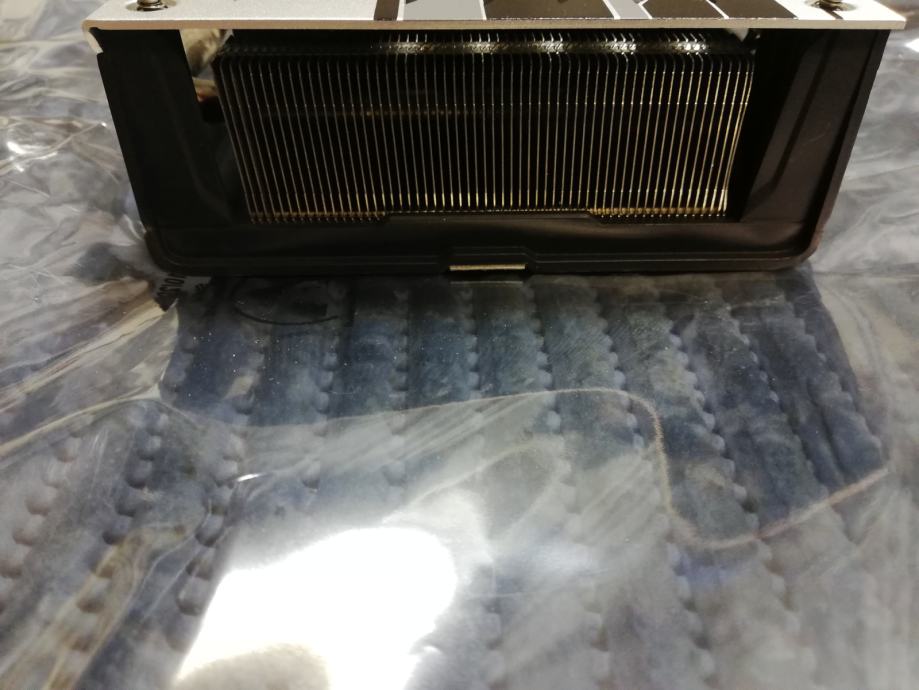

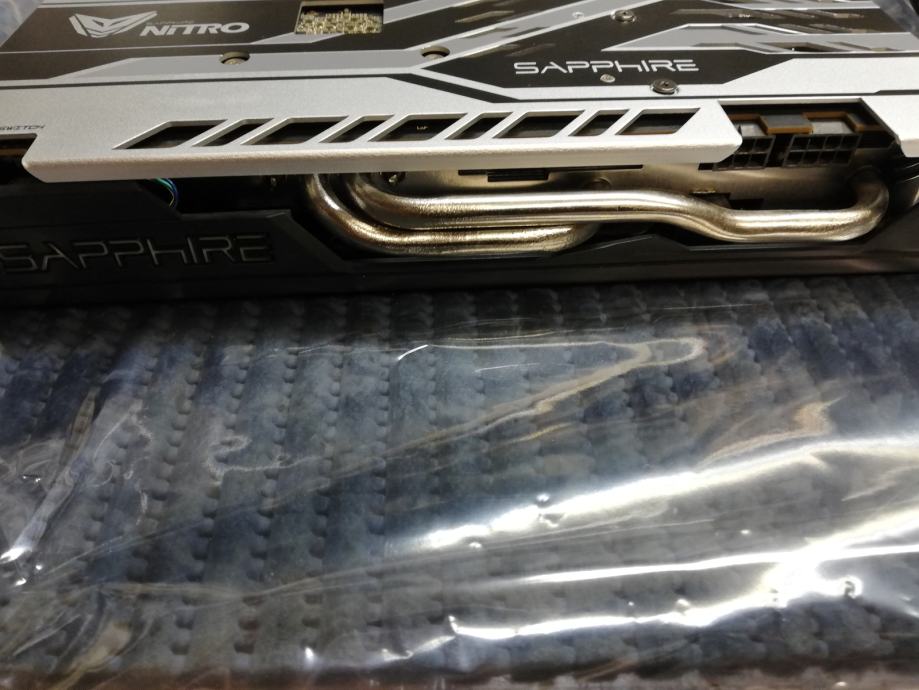

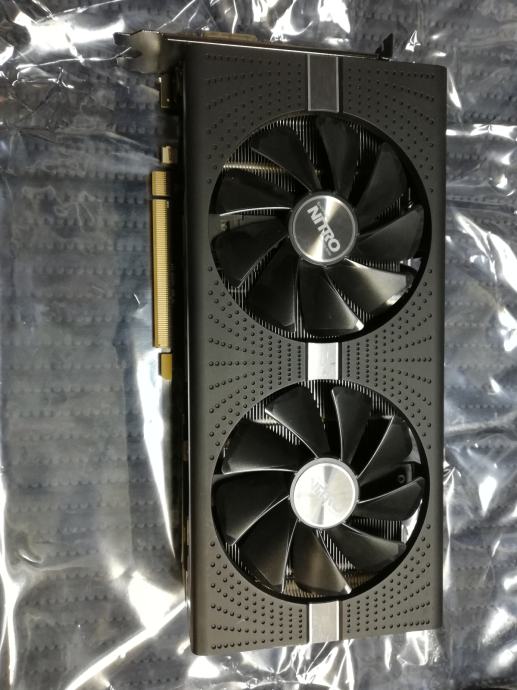

Cooler Type
Dual-X Cooling Technology
Two ball bearing fan
Fan Quick Connect
Form Factor
2.2 Slots, ATX
Dimension: 260X135X43mm
Power Consumption
195W
OS
Windows® 11, 10, Windows® 7, 64bit operating system required

System Requirement
500 Watt or greater power supply (Recommended)
1 x 8-pin Power Connector + 1 x 6-pin Power Connector
PCI Express® compliant motherboard with one x16 graphics slot
