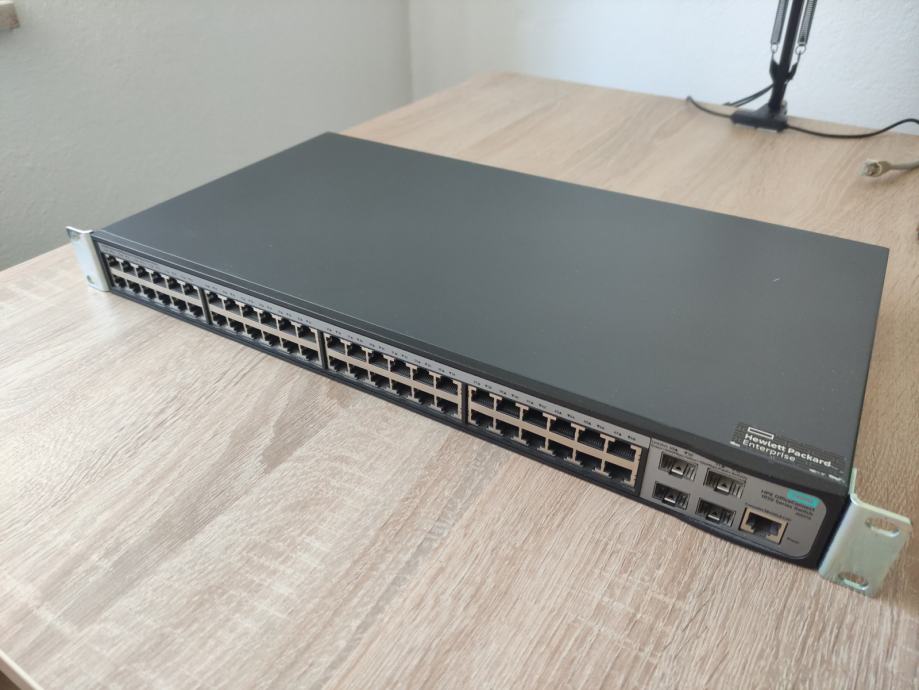

HPE OfficeConnect 1920-48G Managed Switch | JG927A | 48 port

Prodam HPE OfficeConnect 1920-48G Managed stikalo.

Porabo ima samo 15W, tako da je zelo varčen v primerjavi z drugimi primerljivimi stikali.

HPE OfficeConnect 1920 48G Switch JG927A
• 48 RJ-45 auto-negotiating 10/100/1000 ports
• 4 SFP 1000 Mbps ports
• min=0 \ max=4 SFP Transceivers
• 1U - Height

Specifikacije: https://support.hpe.com/hpesc/public/docDisplay?docId=c04394247&docLocale=en_US

HPE OfficeConnect 1920 48G Switch (JG927A)
I/O ports and slots 48 RJ-45 auto-negotiating 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type
100BASE-TX, IEEE 802.3ab Type 1000BASE-T)
4 SFP 100/1000 Mbps slots (IEEE 802.3u Type 100BASE-FX, IEEE 802.3z Type 1000BASE-X
Supports a maximum of 48 autosensing 10/100/1000 ports plus 4 SFP 100/1000 slots
Additional ports and
slots
1 RJ-45 console port to access limited CLI port
Physical characteristics Dimensions 17.32(w) x 9.37(d) x 1.73(h) in (44 x 23.8 x 4.4 cm) (1U height)
Weight 6.94 lb (3.15 kg)
Memory and processor MIPS @ 650 MHz, 32 MB flash, 128 MB SDRAM; packet buffer size: 1.5 MB
Mounting and enclosure Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included)
Performance 100 Mb Latency < 5 μs
1000 Mb Latency < 5 μs
Throughput 77.4 Mpps (64-byte packets)
Routing/Switching
capacity
104 Gbps
Routing table size 32 entries (IPv4), 32 entries (IPv6)
MAC address table size 16384 entries
Reliability MTBF (years) 76.92
Environment Operating temperature 32°F to 104°F (0°C to 40°C)
Operating relative
humidity
10% to 90%, noncondensing
Nonoperating/Storage
temperature
-40°F to 158°F (-40°C to 70°C)
Nonoperating/Storage
relative humidity
10% to 95%, noncondensing
Altitude
Acoustic Pressure: 49.7 dB; ISO 7779
Electrical characteristics Frequency 50/60 Hz
Achieved Miercom Certified Green Award
AC voltage 100 - 240 VAC
Maximum power rating 32 W
Notes Maximum power rating and maximum heat dissipation are the worst-case
theoretical maximum numbers provided for planning the infrastructure
with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all
modules populated.


Ponastavljen na tovarniške nastavitve.

Prevzem Ljubljana - Kamnik - Kranj.
Telefon: 031 429 568
