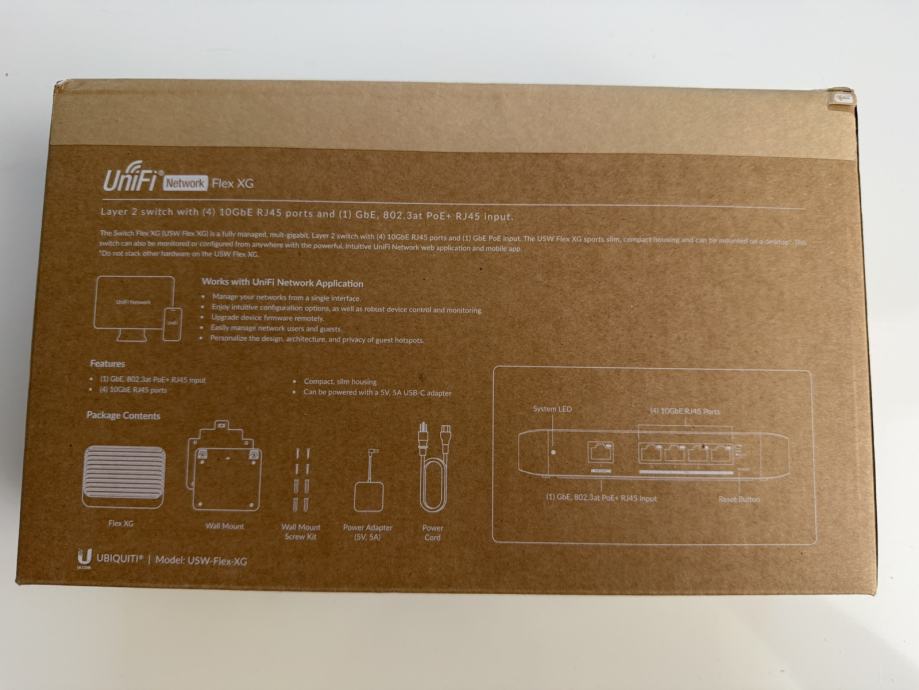

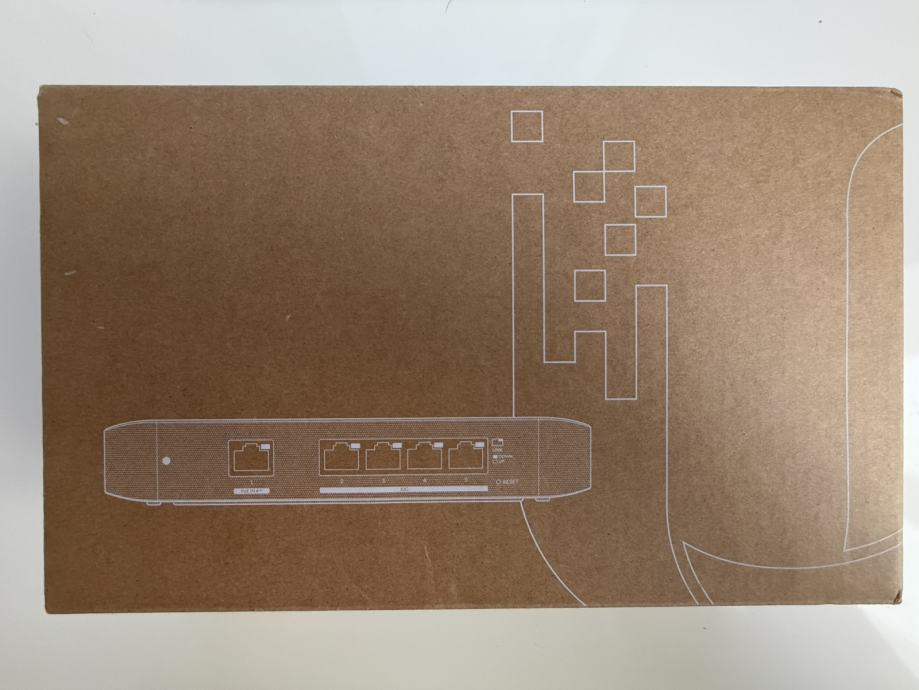

Ubiquiti USW-FLEX-XG 10Gb switch mrežno stikalo RJ45

novo zapakirano, neodprto. dobil za darilo, ne potrebujem.

Ljubljana, 031 309 392

Dimensions
135 x 185 x 32 mm
(5.3 x 7.3 x 1.3")
Port Layout
1 GbE RJ45
1
(1G/100M/10M)
10 GbE RJ45
4
Form Factor
Compact desktop, wall

Performance
Switching Capacity
82 Gbps
Total Non-Blocking Throughput
41 Gbps
Forwarding Rate
61 Mpps
Supported VLANs
1,000
MAC Address Table Size
16,000
Packet Buffer Size
1.5 MB
Access Lists
IPv4
12
MAC
10

Layer 2 Features
LACP Port Aggregation
✓
STP & RSTP
✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
✓
IGMP Snooping
✓
802.1X Control
✓
MAC-Based ACLs & Device Isolation
✓
DHCP Snooping & Guarding
✓
Egress Rate Limit
✓
Flow Control
✓
Storm Control
✓
Multicast & Broadcast Rate Limiting
✓
MAC Address Blocking
✓
IP-Based ACLs & Network Isolation
✓
MAC-Based Port Restriction
✓
Port Isolation
✓
Port Mirroring
✓
Jumbo Frames
✓
LLDP-MED
✓
Voice VLAN
✓
Loop Protection
✓
Virtual Network Override
✓

Hardware
Max. Power Consumption
25W
Power Method
(1) PoE+
(1) USB Type-C, 5V DC, 5A
Power Input Method
USB Input
PoE
Power Supply
AC/DC, external, 25W
Supported Voltage Range
4.8—5.2V DC/USB
44V—57V PoE
Management
Ethernet
Heat Dissipation
85.3 BTU/hr
Weight
1.2 kg (2.7 lb)
Enclosure Material
Polycarbonate
ESD Protection
Air: ± 16kV, contact: ± 12kV
Ambient Operating Temperature
-5 to 45° C (23 to 113° F)
Ambient Operating Humidity
10 to 90% noncondensing
NDAA Compliant
✓
Certifications
CE, FCC, IC, Anatel: 06606-25-08356

Software
Application Requirements
UniFi Network
Version 6.1.67 and later
