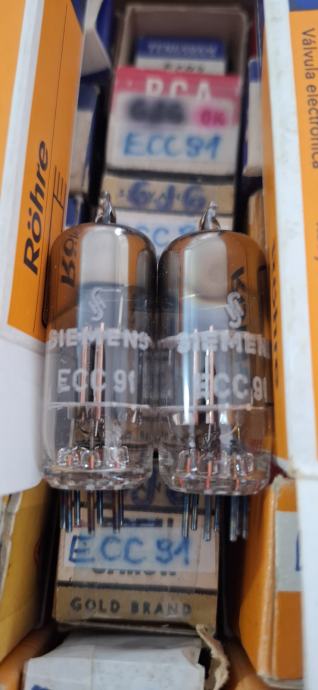

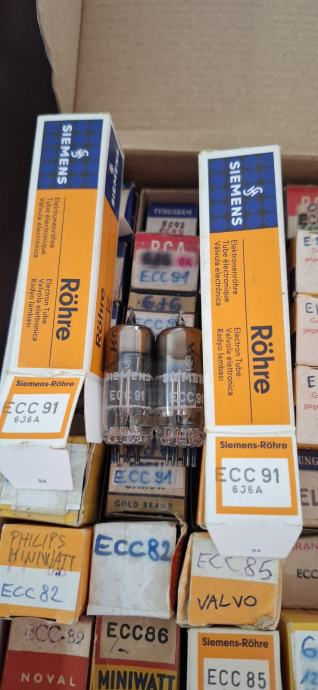

elektronka ECC91 = 6Н15П = TS52 = OSW2025 = 6CC31 = 6J6
- Cena
- 15 €
Šifra oglasa: 14642266
Osnovne informacije
- Vrsta ponudbe
- Prodam
- Lokacija
- Posavska, Brežice, Brežice
- Stanje
- novo
Opis oglasa
RADIOMUSEUM:
Country:
Europe
Brand: Common type Europe tube/semicond.
Tube type: Double Triode VHF
Identical to ECC91 = 6Н15П = TS52 = OSW2025 = 6CC31 = 6J6
Similar Tubes
Other class quality (otherwise equal):
5964 ; 6030 ; 6099 ; 6101 ; 6535 ; 6927
Heater different:
18J6 ; 6045 ; 9J6
First year 1951 Röhren Taschenbuch Bd. I, Leipzig Analysis by original leaflets = 1955
First Source (s)
May.1949 : -- Original-techn. papers.
The Valve Museum:
Mullard describe the ECC91 as a double triode with a common cathode for use as an RF power amplifier or oscillator. They further state that an output power of 1 Watt may be obtained from an ECC91 in a push pull oscillator at 250 MHz. This would involve an anode voltage of 150 Volts and a common grid resistor of 2000 Ohms. Each valve would dissipate 1.5 Watts.
The thin glass tube envelope is 18 mm in diameter and, excluding the B7G base pins, is 48 mm tall.
References: Data-sheet & 1040. Type ECC91 was first introduced in 1956. See also 1956 adverts.
031 337 262
Country:
Europe
Brand: Common type Europe tube/semicond.
Tube type: Double Triode VHF
Identical to ECC91 = 6Н15П = TS52 = OSW2025 = 6CC31 = 6J6
Similar Tubes
Other class quality (otherwise equal):
5964 ; 6030 ; 6099 ; 6101 ; 6535 ; 6927
Heater different:
18J6 ; 6045 ; 9J6
First year 1951 Röhren Taschenbuch Bd. I, Leipzig Analysis by original leaflets = 1955
First Source (s)
May.1949 : -- Original-techn. papers.
The Valve Museum:
Mullard describe the ECC91 as a double triode with a common cathode for use as an RF power amplifier or oscillator. They further state that an output power of 1 Watt may be obtained from an ECC91 in a push pull oscillator at 250 MHz. This would involve an anode voltage of 150 Volts and a common grid resistor of 2000 Ohms. Each valve would dissipate 1.5 Watts.
The thin glass tube envelope is 18 mm in diameter and, excluding the B7G base pins, is 48 mm tall.
References: Data-sheet & 1040. Type ECC91 was first introduced in 1956. See also 1956 adverts.
031 337 262
