Opis oglasa
RF Koaksialni kabel profi za zunanjo uporabo premera 10.1 mm, 75Ω profi inštalacijski kabel, izgube pri 860MHz ima 0.13dB

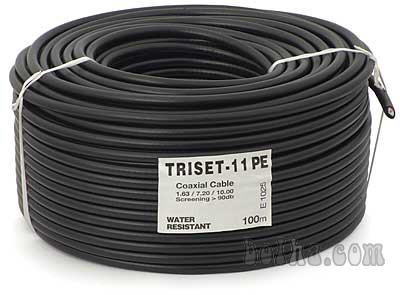

•Model TRISET PRO-11 - 100m
•Premer jedro/plašč - 1.63 / 10.1mm
•Impedanca 75Ω
•Kapacitivnost 53pF/m
•Izgube 470/860MHz - 9/13 dB
•Teža 11.0 kg
Main features:
•low loss,
•perfect matching,
•high screening efficiency,
•PE sheath,
•gel-filled.
Declaration of RoHS compliance.
TRISET-11 PE
tolerance Copper core
Diameter mm 1.63 +/-0.03
Mechanically foamed dielectric
Thickness mm 2.74 +/-0.05
Outer diameter mm 7.11 +/-0.1
Ovality +/-2%
Aluminum foil/Pet/Aluminum foil 9+23+9 um
Width mm 27 +/-0.3
Overlap mm >3 +/-0.5
Thickness um 46 +/-3
Braid Material Aluminum
Diameter of wires mm 0.16 +/-0.01
Number of wires pcs 24 x 7
Winding angle deg 27
Sheath
Material PE + gel
Thickness mm 1 +/-0.1
Outer diameter mm 10.2 +0.20/-0.05
Color black
Minimum bending radius deg 100
Electrical parameters
Core resistance at 20°C ohm/km 8.3 +/-0.5
Braid resistance at 20°C ohm/km 13.5 +/-0.5
Capacitance pF/m 52 +/-1.5
Resistance of dielectric
Mohm/km 2000 +/-3%
Impedance ohm 75 +/-3
Wave reduction factor % 84 +/-1
Cable lossFrequency [MHz]
Theoretical attenuation [dB/100m]
Measured attenuation [dB/100m]
47 2.13 2.5
88 3.28 4.1
174 5.04 5.6
230 5.78 6.5
470 8.4 9.3
862 11.9 13.2
950 12.86 13.9
2150 20.28 21.0
2400 22.1 21.6
Return lossFrequency
MHz
5-470
470-862
862-2150
2150-2400
Theoretical
dB
>=23
>=23
>=20
>=18
Measured
dB
23
22
20
18
Shielding efficiency
Frequency MHz 30-2400
Screening factor dB >=100
According to EN50117 norm, coaxial cables are classified into C, B, A, A+, A++ groups.
Triset 11 features the best screening efficiency among distribution cables available on the market ( with parameters placing it between A+ and A++).
Classification of screening efficiency
Class
30-1000 MHz[dB] 2-3 GHz [dB]
C 75 55
B 75 55
A 85 65
A+ 95 75
A++ 105 85
Naročilo opreme več informacij in ostala ponudba;
http://www.wlan-sat.com/
Možnost dodatnega rabata ob nakupu še dodatnih izdelkov iz naše ponudbe.
Oglejte si tudi naše ostale artikle v trgovini http://www.bolha.com/trgovina/wlan-sat ali na naših spletnih straneh http://www.wlan-sat.com/
