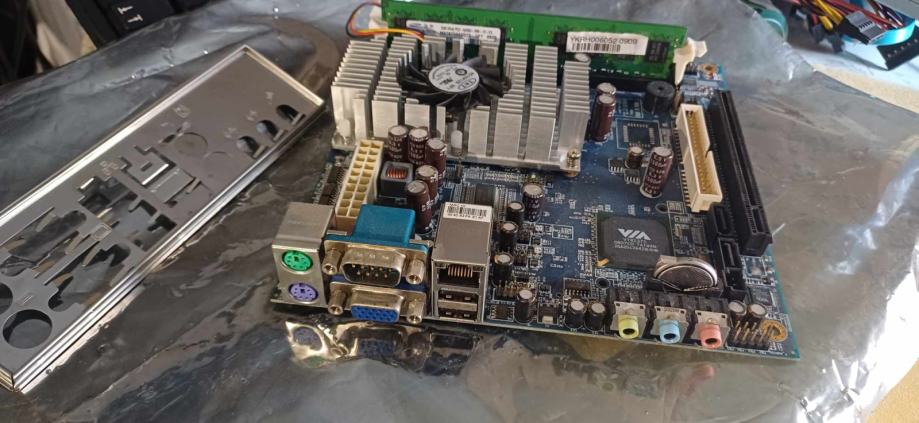

MINI ITX plošča VIA + cpu 1.6ghz+2GB ram+io shield

Prodam rabljeno MINI ITX osnovno ploščo z integriranim procesorjem, poleg je tudi io shield, ter 2GB rama DDR2

Znamka: VIA
Model:VB8001-16

Model Name VB8001
Processor 1.6GHz VIA NanoTM
Chipset VIA CN896 North Bridge
VT8237S South Bridge
System Memory 2 DDR2 533/667 DIMM sockets
Up to 4 GB memory size
VGA Integrated VIA Chrome9™ HC graphics with 2D/3D and video acceleration
Expansion Slots 1 x 16-Lane PCIe slot
1 x 32 Bit Mini PCI slot
Onboard IDE 1 x UltraDMA 133/100/66 connector
Onboard LAN VIA VT6103L 10/100 Mbps Ethernet PHY
Onboard Audio VIA VT1708A High Definition Audio Codec
Onboard Super I/O VIA VT1211 LPC Super I/O
Onboard I/O Connectors 2 x SATA (3 Gbps) connectors
2 x Fan pin connectors: CPU/Sys FAN
3 x USB pin connectors for 6 additional USB 2.0 ports (1 supports VIA WLAN module)
1 x Serial port pin connector for COM2 (5V/12V selectable)
1 x LPC header
1 x CIR pin connector (switchable for KB/MS)
1 x FIR pin connector (IRDA 1.0)
1 x SMBus connector
1 x Buzzer
1 x S/PDIF out pin connector
1 x Front panel pin connector
1 x Front panel audio pin connector (Mic and Line-out)
1 x ATX power connector
Back Panel I/O 1 x PS2 mouse port
1 x PS2 keyboard port
1 x Serial port
1 x VGA port
1 x RJ-45 LAN port
2 x USB 2.0 ports
3 x Audio jacks: Line-out, Line-in and Mic-in (horizontal, Smart 5.1 Supported

Cena 15,00€
Prevzem: Posavje
Pošljem po pošti po predhodnem nakazilu na TRR
Info o41 499 255

v sredo ali četrtek lahko pripeljem do Ljubljane
