Osnovna plošča Gigabyte GA-P31-ES3G , procesor Intel Core 2 , 3Gb DDR2

Prodam delujočo osnovno ploščo z Intel procesorjem, original hladilnikom ter 3Gb DDR2 spominom.
Osnovna plošča je Gigabyte GA-P31-ES3G v1.1
Procesor Intel Core 2 Duo E7300 2.667 GHz
Spomin Transcend 1x 2Gb + 1x 1Gb = skupaj 3Gb

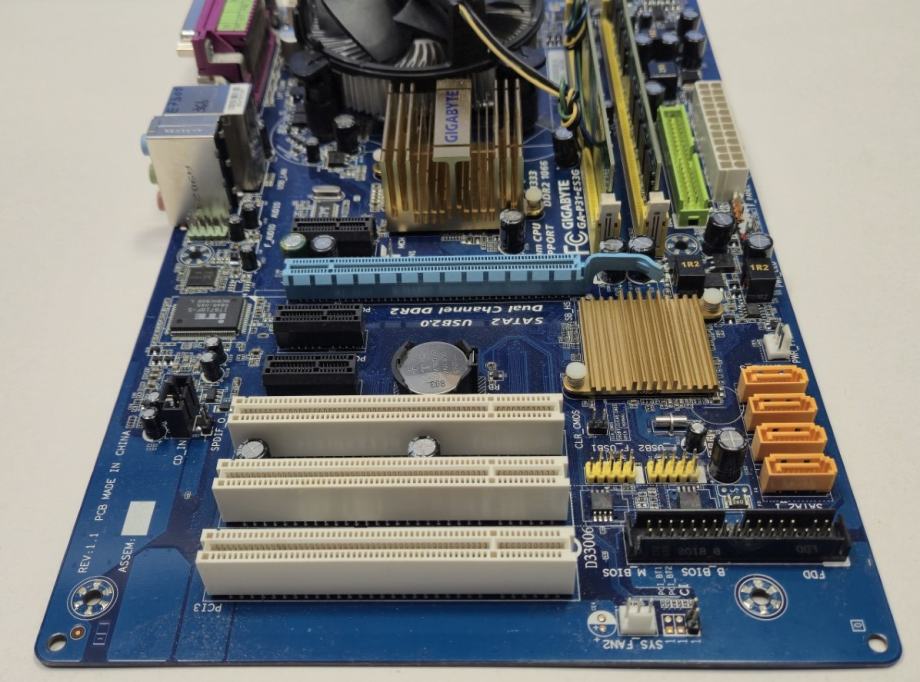

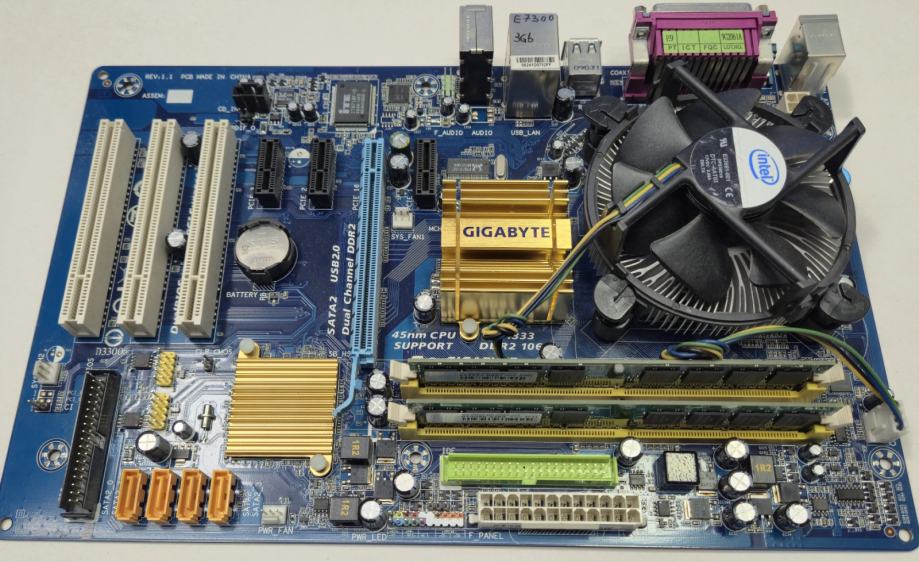

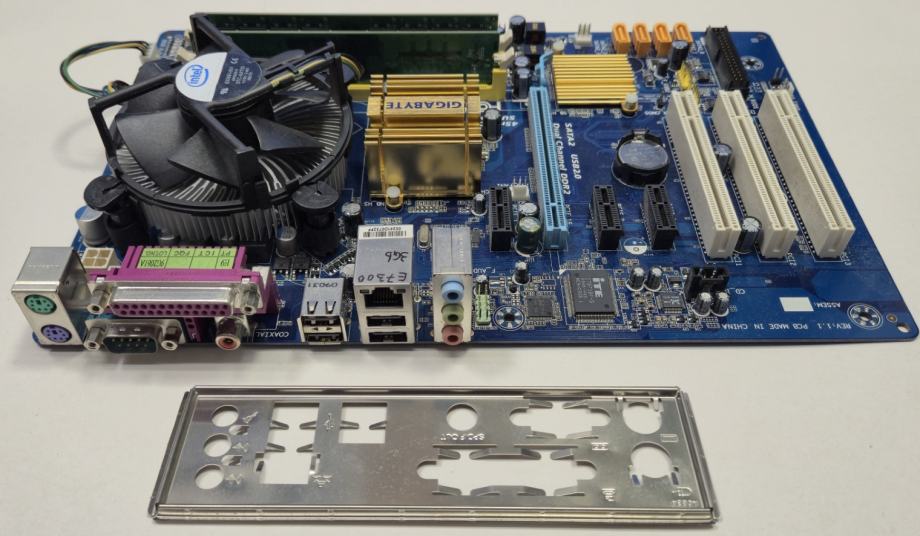

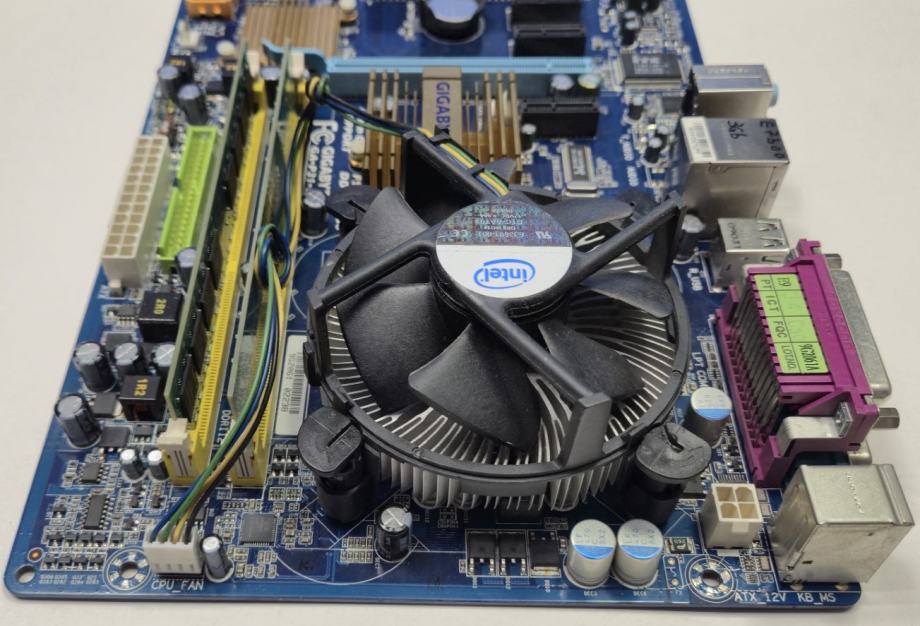

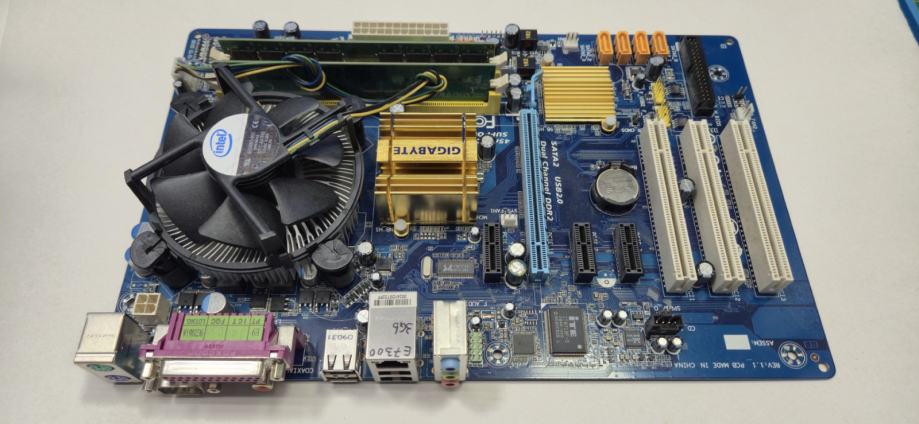

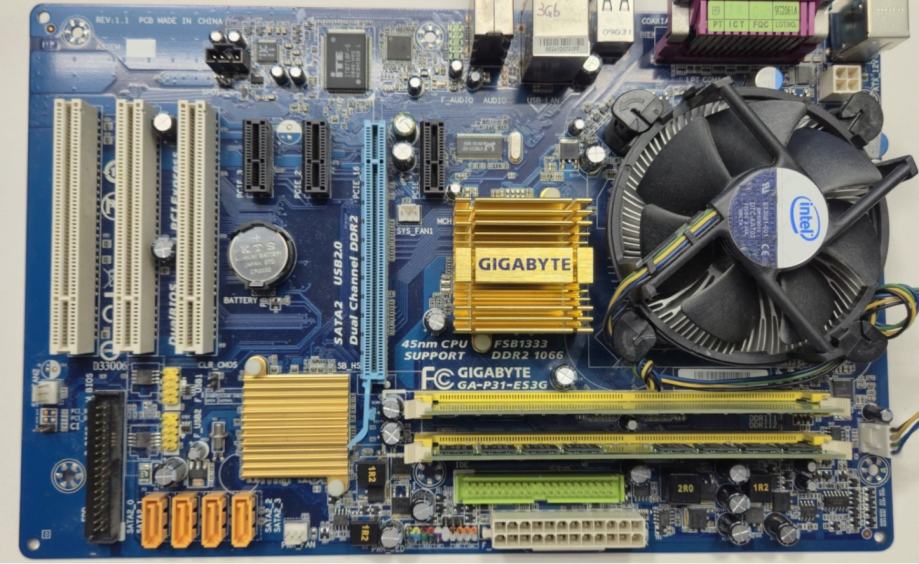

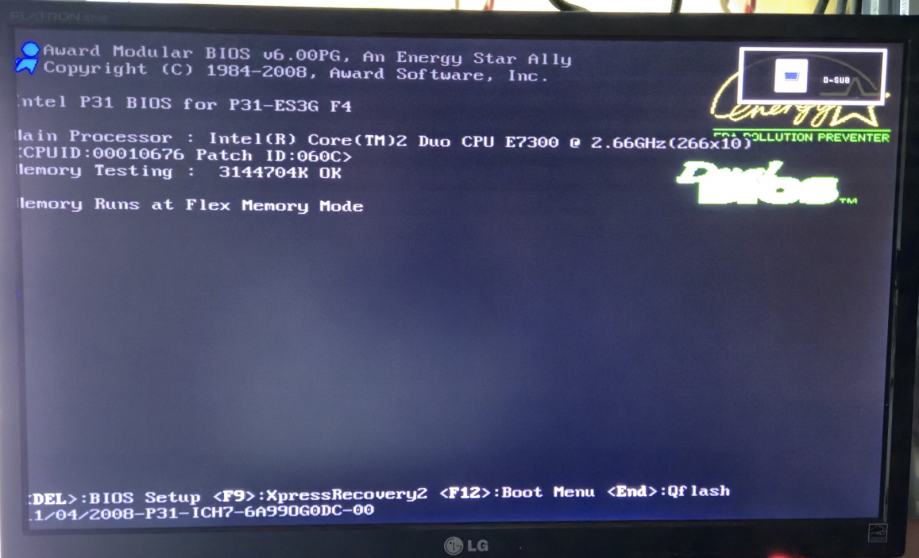

VSE KOT NA SLIKI

Opis osnovne plošče:
CPU
Support for an Intel® Core™ 2 Extreme processor/ Intel® Core™ 2 Quad processor/ Intel® Core™ 2 Duo processor/ Intel® Pentium® processor Extreme Edition/Intel® Pentium® D processor/ Intel® Pentium® 4 processor Extreme Edition/Intel® Pentium® 4 processor/ Intel® Celeron® processor in the LGA 775 package
L2 cache varies with CPU

Front Side Bus
1600(O.C.)/1333/1066/800 MHz FSB

Chipset
North Bridge: Intel® P31/G31 Express
South Bridge: Intel® ICH7

Memory
2 x 1.8V DDR2 DIMM sockets supporting up to 4 GB of system memory
Dual channel memory architecture
Support for DDR2 1066/800/667 MHz memory modules
* Please refer "Memory Support List" for memory support information.

Audio
Realtek ALC888 codec
High Definition Audio
2/4/5.1-channel
Support for S/PDIF Out
Support for CD In

LAN
RTL 8111C chip (10/100/1000 Mbit)

Expansion Slots
1 x PCI Express x16 slot
3 x PCI Express x1 slots
3 x PCI slots

Storage Interface
South Bridge:
1 x IDE connector supporting ATA-100/66/33 and up to 2 IDE devices
4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices
iTE IT8718 chip:
1 x floppy disk drive connector supporting up to 1 floppy disk drive

USB
Integrated in the South Bridge
Up to 8 USB 2.0/1.1 ports (4 on the back connected to the internal USB headers)

Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
1 x floppy disk drive connector
1 x IDE connector
4 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x power fan header
1 x front panel header
1 x front panel audio header
1 x CD In connector
1 x S/PDIF Out header
2 x USB 2.0/1.1 headers
1 x chassis intrusion header
1 x power LED header

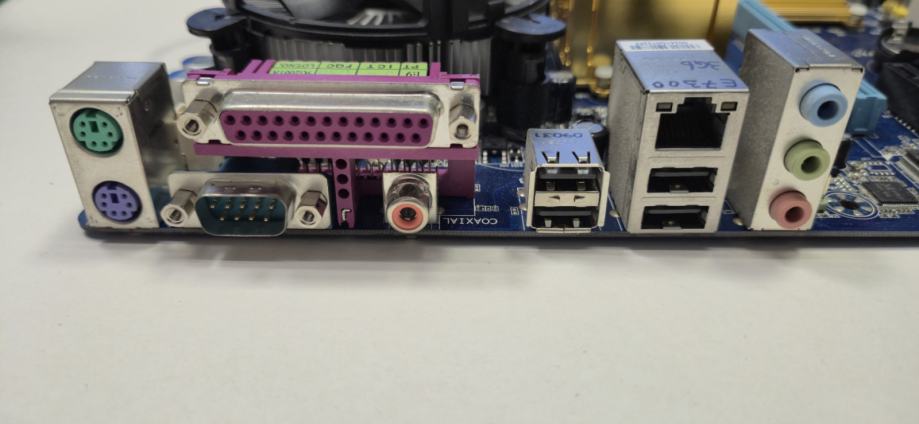

Back Panel Connectors
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x parallel port
1 x serial port
1 x coaxial S/PDIF Out connector
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In/Line Out/Microphone)

I/O Controller
iTE IT8718 chip

H/W Monitoring
System voltage detection
CPU temperature detection
CPU/System fan speed detection
CPU overheating warning
CPU/System fan fail warning
CPU fan speed control

BIOS
1 x 4 Mbit flash
Use of licensed AWARD BIOS
PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b

Unique Features
Support for @BIOS
Support for Download Center
Support for Q-Flash
Support for EasyTune
Support for Xpress Install
Support for Xpress Recovery2
Support for Dual BIOS
Support for Easy Energy Saver

Bundled Software
Norton Internet Security (OEM version)

Operating System
Support for Microsoft® Windows Vista/XP/2000

Form Factor
ATX Form Factor; 30.5cm x 19.4cm
