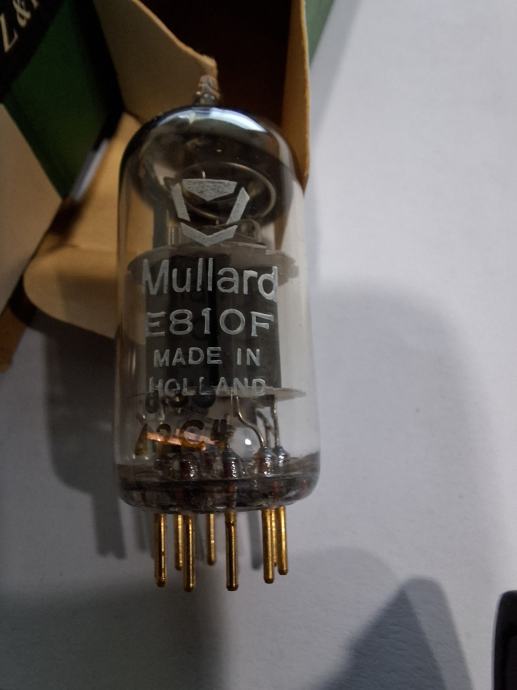

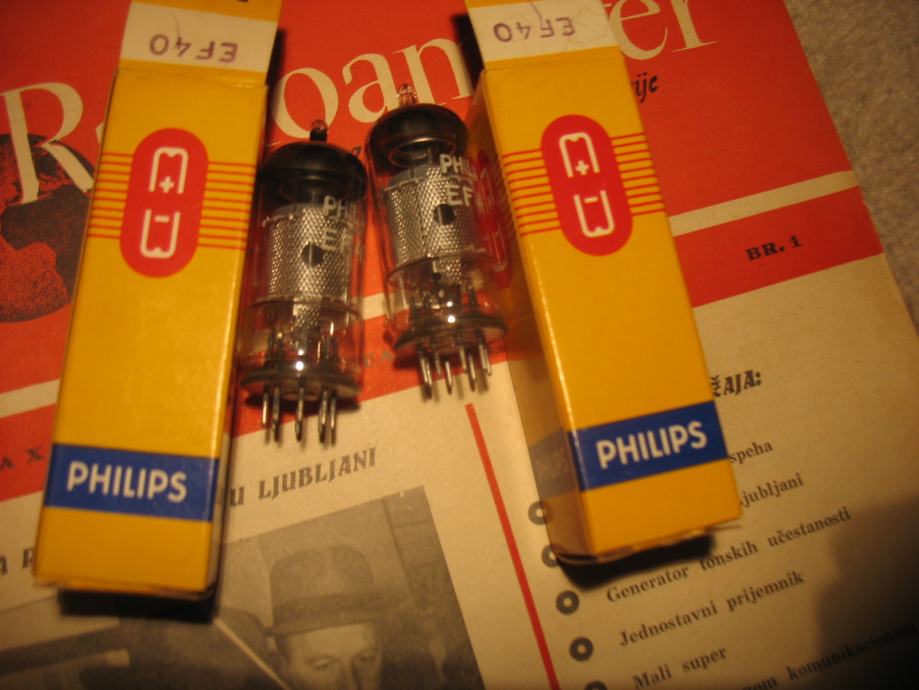

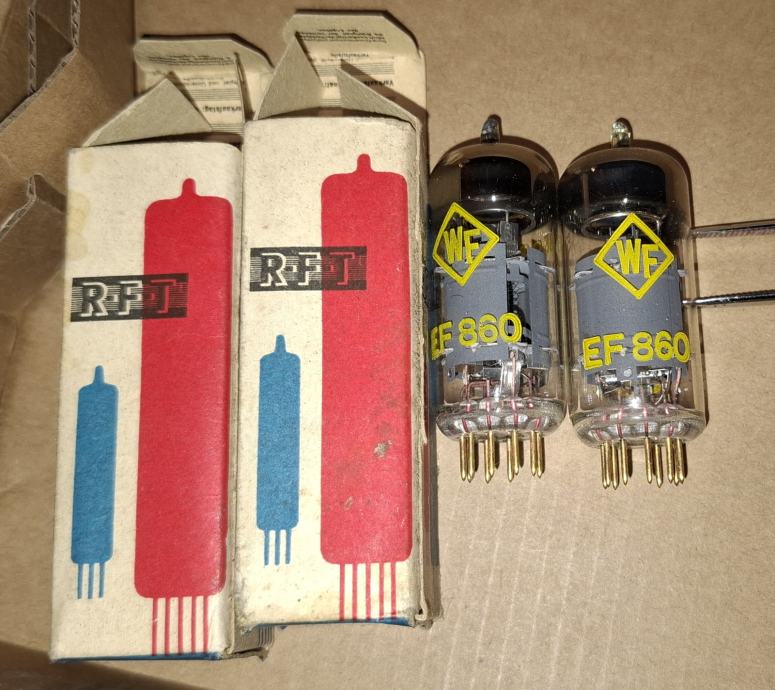

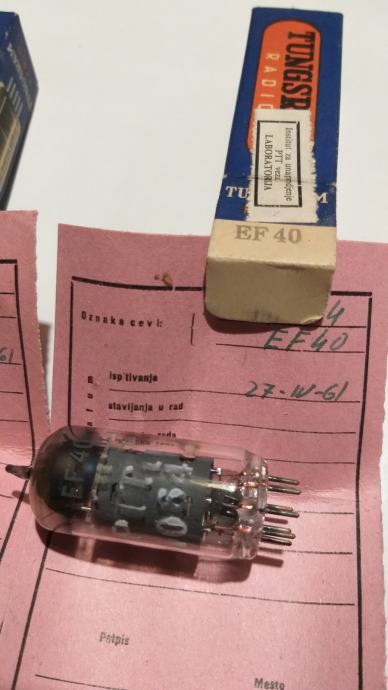

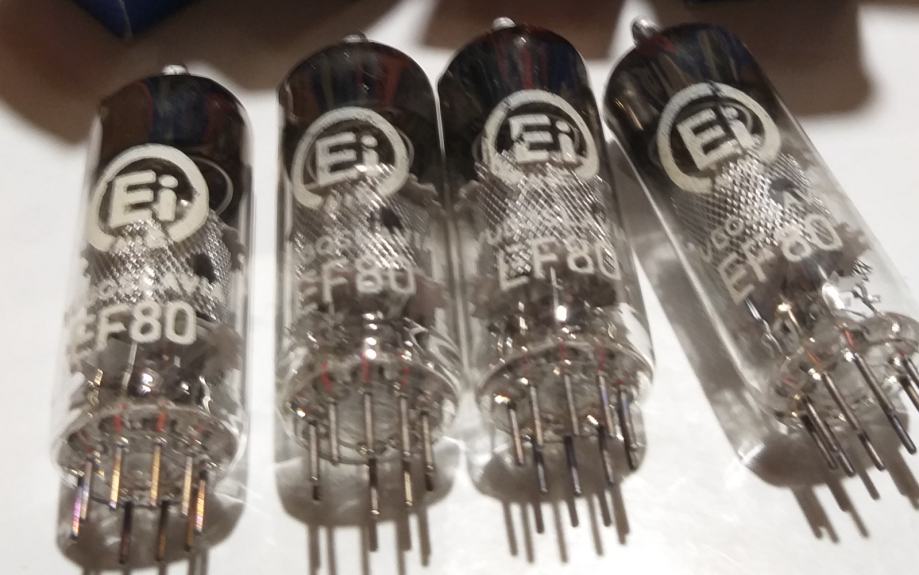

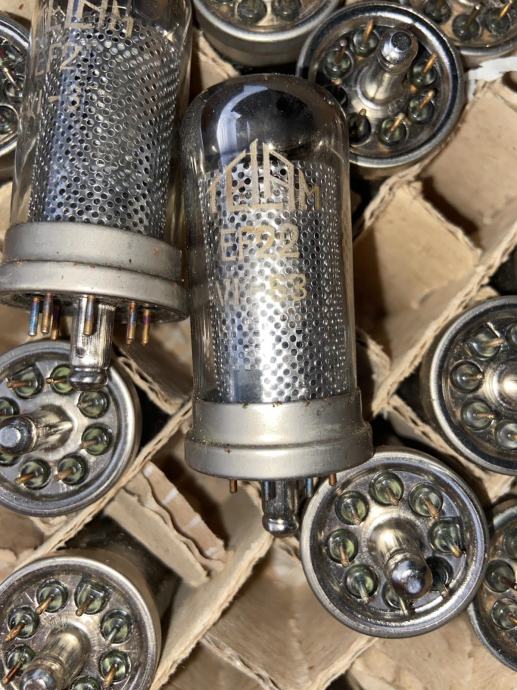

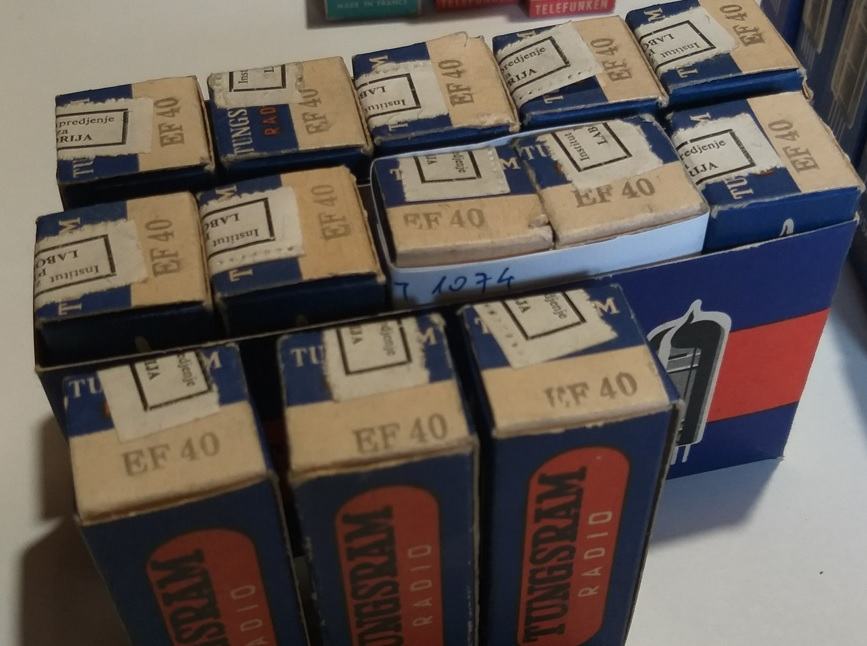

EF86 elektronka pentoda ( in E180F E810F E95F EF22 EF40 EF80 EF860 )

03133726++

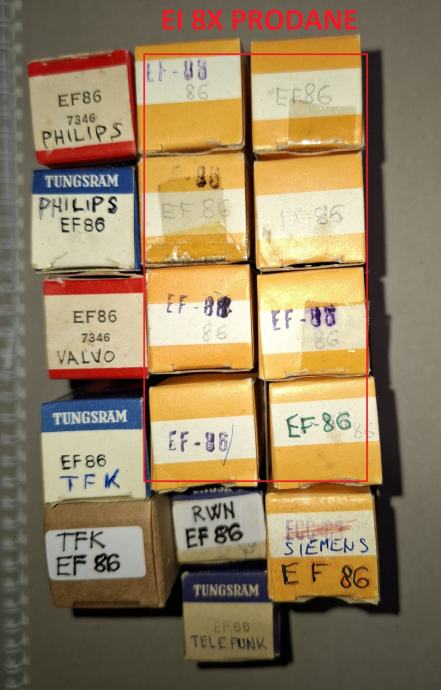

cena je za EF86, za ostale po dogovoru, večina imam po več kosov

From Wikipedia, the free encyclopedia
EF86
Four EF86-type tubes
Classification Pentode
Service Audio frequency
Cathode
Cathode type Indirectly heated
Filament voltage: 6.3 V RMS or dc
Filament current 200 mA
Anode
Max dissipation Watts 1 W
Max current 6 mA
Socket connections
B9A
Typical class-A amplifier operation
Amplification factor 185 (45dB)
Screen voltage 200 V

The EF86[1] is a high transconductance sharp cutoff pentode vacuum tube with Noval (B9A) base for audio-frequency applications.

It was introduced by the Mullard company in 1953 [2] and was produced by Philips, Mullard, Telefunken, Valvo, and GEC among others. It is very similar electrically to the octal base EF37A and the Rimlock base EF40. Unlike many pentodes, it was designed specifically for audio applications, with low noise and low microphony claimed advantages, although a rubber-mounted vibration-resistant base was still recommended.[2] It has a much higher stage gain than any triode, which makes it susceptible to microphony. The EF86 was used in many preamplifier designs during the last decades of vacuum tube hi-fi development. An industrial tube variant is known as 6267. In the former Soviet Union a variant was also produced as type 6Zh32P (Russian: 6Ж32П.) As of 2012 EF86s were being produced in Russia in two versions under the Electro-Harmonix brand and in the Slovak Republic as JJ Electronic (formerly Tesla).
Characteristics

6.3 Volt, 200 mA indirectly heated A.F. miniature pentode with Noval (B9A) base with an EIA 9CQ (or 9BJ[3]) basing diagram.

Transconductance: 2.2 mA/V at Ia=3.0 mA, Ig2=0.6 mA, Va=250 V, Vg1=-2.2 V, Vg2=140 V, Vg3=0 V
Voltage gain: 185 (45dB) at Vsupply=250 V, Ik=0.9 mA, Rk=2.2 kilohm, Ra=220 kilohm, Rg1=1 megohm, Vout
